| System Configuration | 101.38kWh/1P264S |
| Rated Voltage | 845Vdc |
| Rated Output Power | 100kW |
| Max. Charge/Discharge Rate | 0.5 P |
| Grid Type | 3P+N+PE |
| Cycle Life | ≥ 5,000 cycles |
| Cooling | Forced air cooling |
| Noise | ≤ 80dB |
| Safety/EMC | GB/T 36276、GB/T 34120、GB/T 34131 UN38.3、IEC62477、IEC61000、IEC62619、IEC63056、UL9540A 、EN50549 |

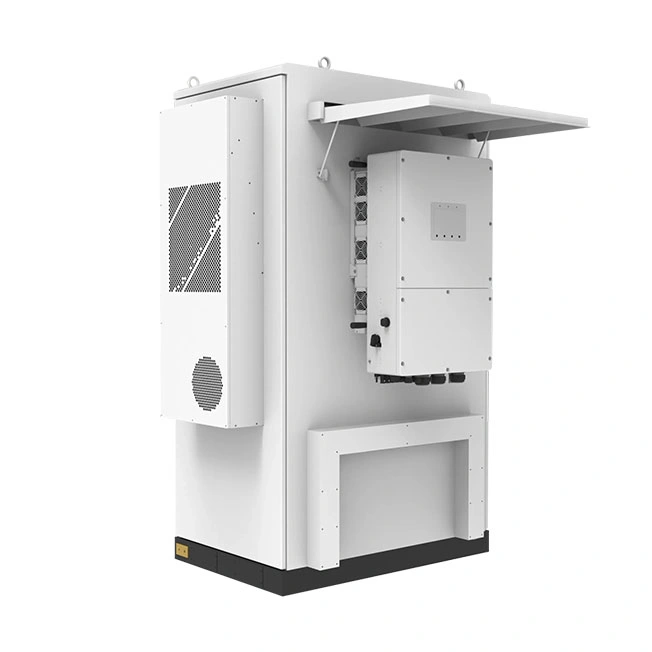

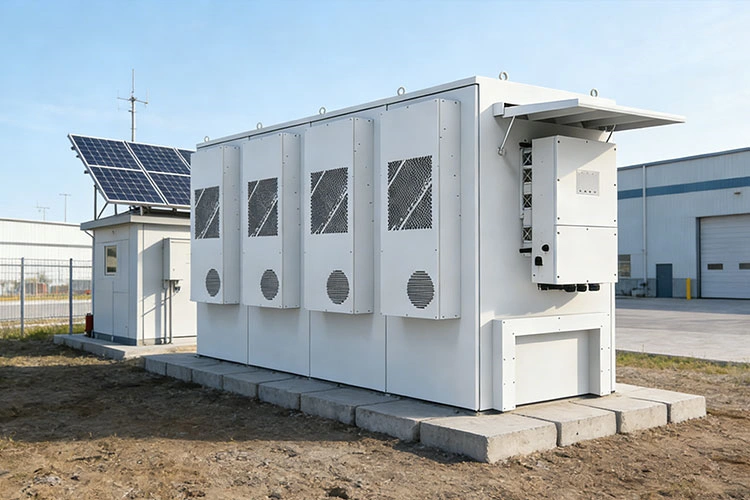

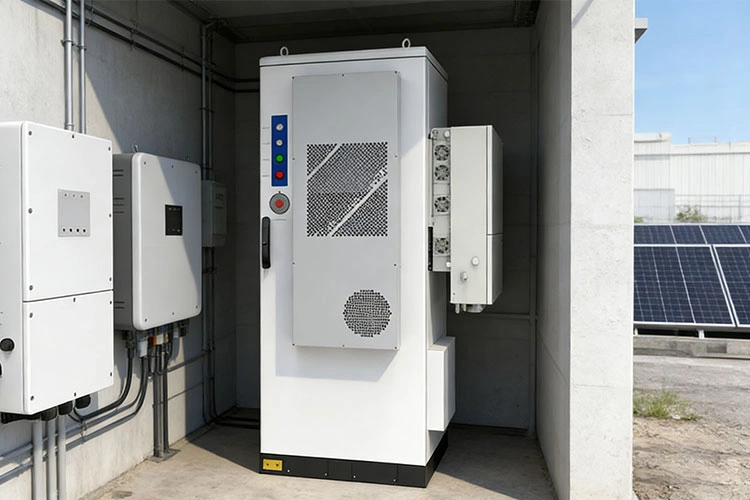

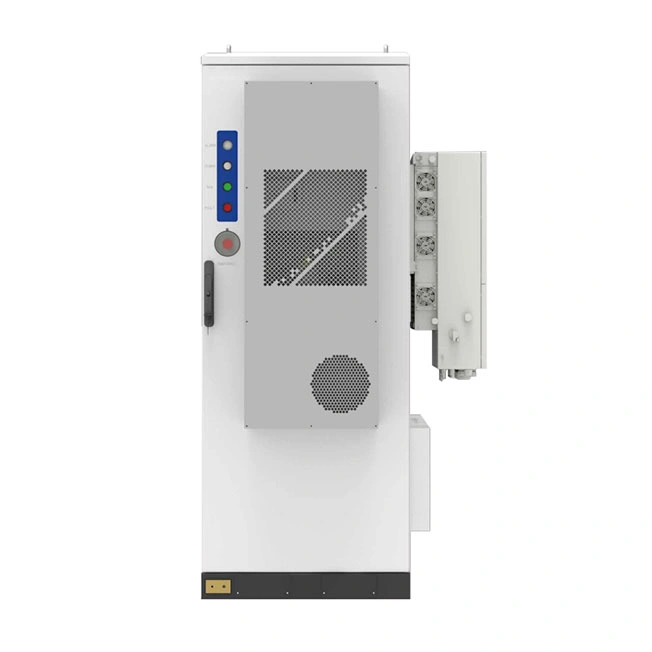

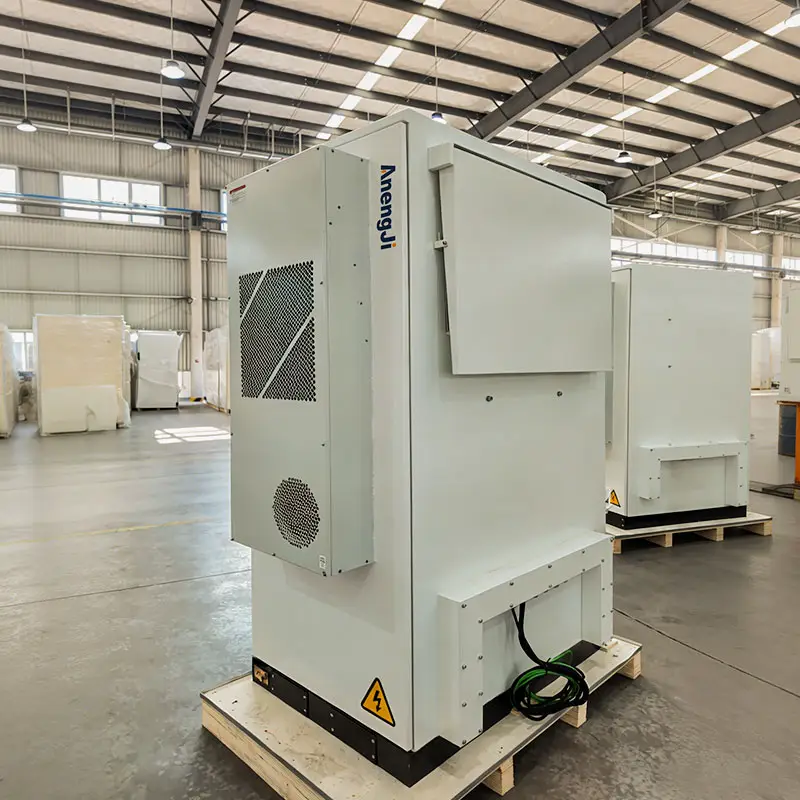

The 100/120kWh air-cooled solar + storage all-in-one cabinet is designed for commercial and industrial parks, small solar power plants, solar + storage + EV charging sites, community microgrids, and off-grid power applications in remote locations. It delivers a fully integrated, turnkey solar energy storage solution that simplifies project deployment and operation.

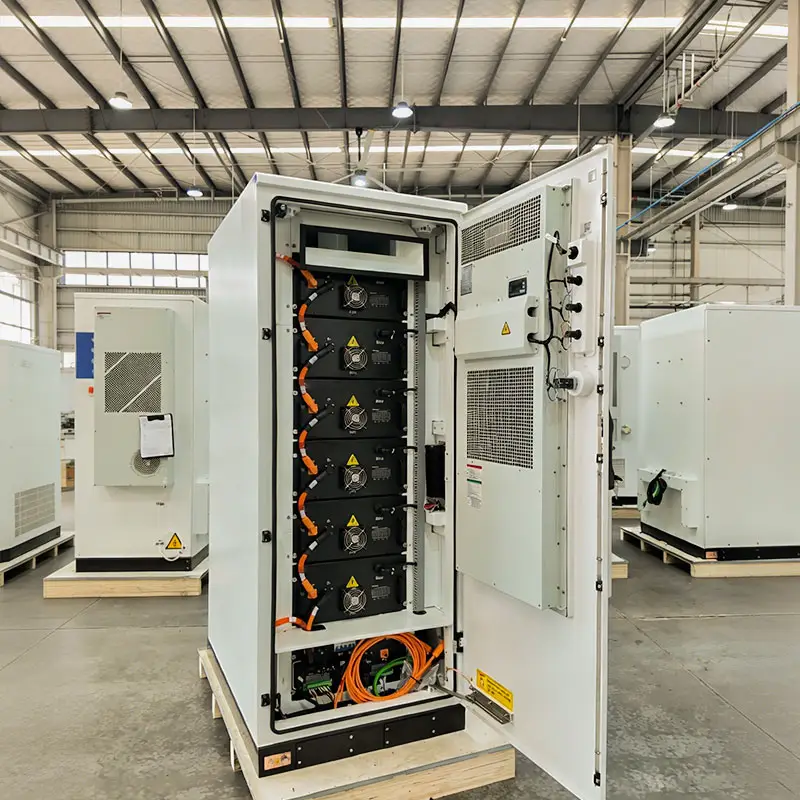

Built on our experience in battery energy storage system (BESS) integration and digital energy management, the cabinet combines a LiFePO₄ battery storage system, hybrid inverter, intelligent air-cooling thermal management, fire protection system, and industrial control computer into a single compact enclosure. The system is easy to install, quick to commission, and supports multiple operating modes such as self-consumption, peak shaving, and backup power. It is engineered to provide reliable performance, simple deployment, and flexible expansion for growing energy demands.
Cost-Effective Energy Performance
Round-trip efficiency (RTE) exceeds 89%, while battery depth of discharge (DoD) surpasses 95%, helping maximize usable energy and improve project ROI.
Safe and Reliable Design
IP55-rated enclosure protects against harsh environmental conditions. Optimized airflow keeps battery cell temperature differences below 6°C. Multiple active safety protections and integrated fire suppression systems enhance operational safety.
Compact, Space-Efficient Layout
With a footprint of just 0.96 m², the cabinet is container-friendly and easy to transport, helping reduce installation time and site preparation work.
Scalable and Expansion-Ready
Modular system architecture supports parallel operation of multiple units, allowing capacity expansion without complex infrastructure modifications.
Easy Operation and Maintenance
Supports both local HMI control and cloud-based remote monitoring. Operators can track system status, alarms, and energy performance data in real time.
In-House Engineered Battery Platform
Built using high-capacity 314Ah LFP battery cells and supported by an integrated generation–grid–load (3S) coordinated control strategy, delivering strong performance and cost advantages.
Flexible System Integration
Compatible with leading hybrid inverter brands, allowing easy integration with different solar PV configurations and project requirements.
Optimized Solar and Storage Coordination
Native support for both DC and AC PV coupling enables faster energy dispatch, higher system integration, and improved overall performance.
| Battery Input | E100WP | E120WP |
|---|---|---|
| Cell Type | LFP 314Ah | |
| Battery Pack Configuration | 20.096kWh/1P20S | |
| Battery System Configuration | 100.48kWh/1P100S | 120.576kWh/1P120S320Vdc |
| Rated System Voltage | 320Vdc | 384Vdc |
| Battery Voltage Range | 280~360Vdc | 336~432Vdc |
| PV Input | |||
|---|---|---|---|
| Recommended Maximum Input Power | 60kW | 80kW | 100kW |
| PV Voltage | 150～850Vdc | ||
| Number of MPPTs | 3 | 4 | 4 |
| Maximum Input Current | 40A*3 | 40A*4 | 40A*4 |
| AC Output | |||
| Rated AC Power | 30kW | 40kW | 50kW |
| Maximum AC Power | 33kVA | 44kVA | 55kVA |
| AC Current Total Harmonic Distortion (THDi) | ＜3% | ||
| DC Injection (DC Component) | ＜0.5%Ipn | ||
| Rated Grid Voltage | 400Vac/3P+N+PE | ||
| Rated Grid Frequency | 50Hz | ||
| Adjustable Power Factor Range | -1～1 | ||
| System Parameters | ||
|---|---|---|
| Maximum System Efficiency | ≥89% | |
| Charge/Discharge Rate (C-rate) | 0.5P | |
| Depth of Discharge (DoD) | 95% | |
| Cycle Life | ≥8000 cycles | |
| Communication | Ethernet/RS485 | |
| Protection Rating | IP55 | |
| Cooling Method | Forced air cooling | |
| Operating Temperature | -25～55℃ | |
| Relative Humidity | 0~95% RH (non-condensing) | |
| Altitude | 2000m (Derating above 2000m) | |
| Fire Protection System | Smoke/Heat Detection + Aerosol (Pack-level & Cluster-level) + Water Fire Suppression | |
| Dimensions (W × D × H) | 800*1200*2100mm | |
| Weight | 1100kg | 1200kg |
| Compliance Standards | UN38.3、IEC62477、IEC61000、IEC62619、IEC63056 | |
Our liquid-cooled energy storage cabinet can be customized to meet the real requirements of projects across Europe.
Grid Compliance, Country by Country
Designed to meet local interconnection standards including EN 50160 and VDE-AR-N 4110 / 4120, so your system passes utility requirements without added redesign.
Your Brand, Front and Center
Add your company logo to the cabinet exterior or the HMI interface for a consistent, professional project look on site.
Ready for Harsh Environments
Rated IP55 or IP65. Operates from –20°C to +55°C. Optional anti-corrosion coating available for coastal or high-humidity locations.
Plug-and-Play Integration
Supports open protocols like Modbus, CAN, and IEC 61850. Easy to connect with PV systems, generators, or existing energy management systems.
Built around your brand and your site requirements. Fast to deploy. Easy to run.
