| System Configuration | 101.38kWh/1P264S |
| Rated Voltage | 845Vdc |
| Rated Output Power | 100kW |
| Max. Charge/Discharge Rate | 0.5 P |
| Grid Type | 3P+N+PE |
| Cycle Life | ≥ 5,000 cycles |
| Cooling | Forced air cooling |
| Noise | ≤ 80dB |
| Safety/EMC | GB/T 36276、GB/T 34120、GB/T 34131 UN38.3、IEC62477、IEC61000、IEC62619、IEC63056、UL9540A 、EN50549 |

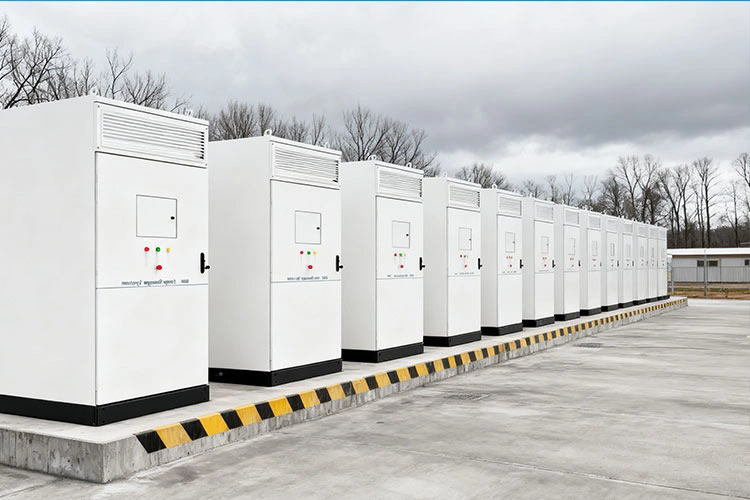

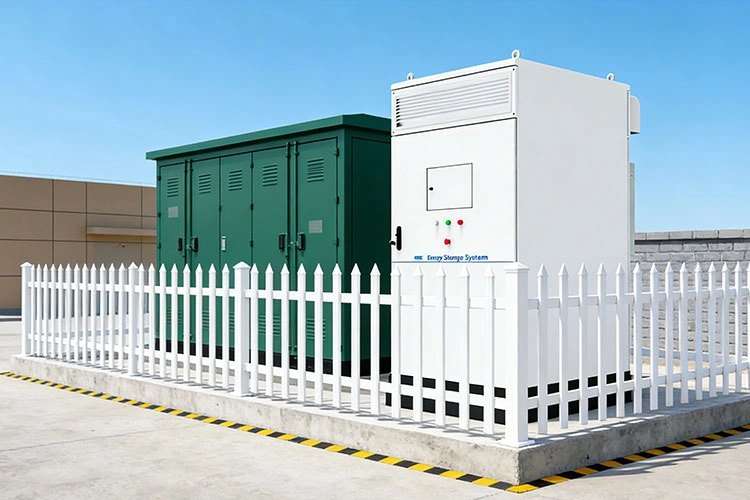

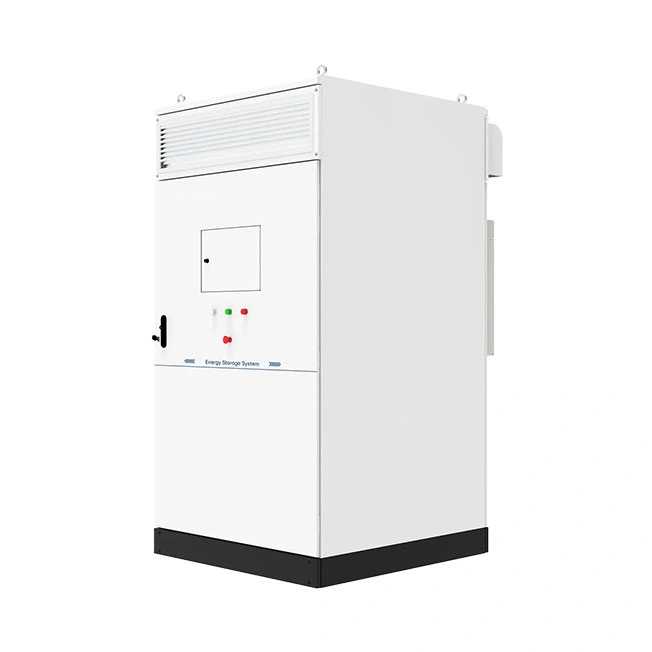

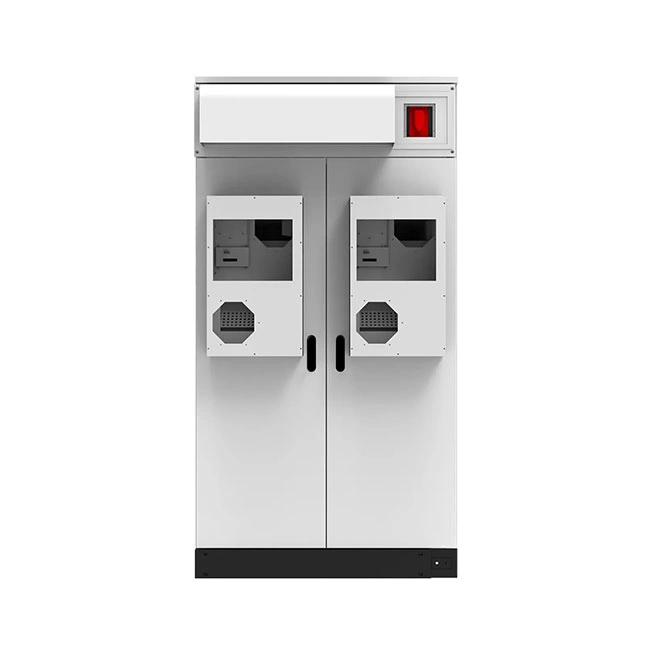

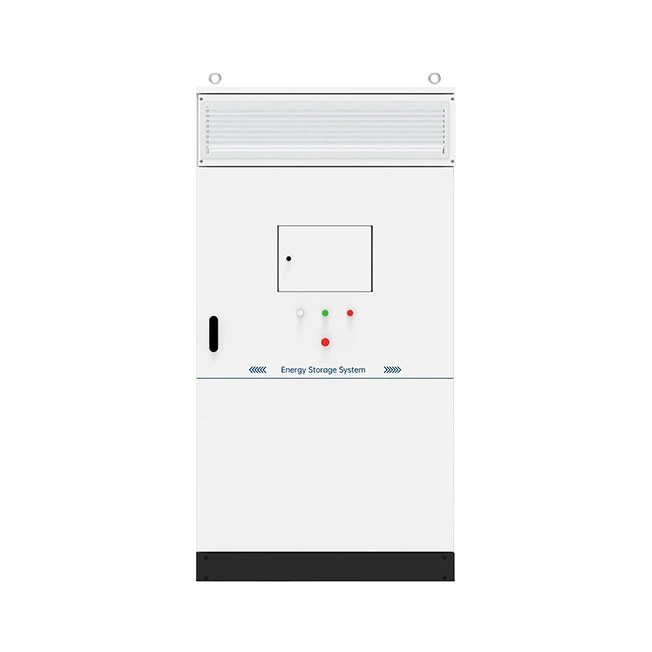

The 101kWh air-cooled all-in-one energy storage cabinet is designed for small to mid-size applications such as factory backup power, peak shaving for commercial buildings, solar + storage + EV charging stations, and community microgrids.
It delivers a highly integrated, fast-to-deploy battery energy storage solution in a single standard cabinet.
Built on an All-in-One design, the system integrates long-life 120Ah LiFePO₄ battery cells, BMS, PCS, active safety protection, intelligent power distribution, and an efficient air-cooling thermal management system into one enclosure. It supports a wide input and output voltage range, runs stably, requires minimal maintenance, and is built for long service life—making it a reliable choice for projects that demand flexibility and dependable performance.
Cost-Effective Performance
Overall system efficiency of ≥89% and battery depth of discharge (DoD) above 95% help maximize usable energy and improve return on investment.
Clean and Energy Efficient
Efficiently stores and dispatches solar and wind power, supporting lower energy costs and a cleaner, low-carbon energy mix.
Smart Monitoring and Control
Supports local HMI operation and remote monitoring via APP and web platforms. System status, alarms, and energy performance can be viewed in real time across multiple devices.
In-House Core Technology
Key systems including the battery pack, BMS, PCS, and EMS are all developed in-house. Hardware and software work seamlessly together, ensuring strong compatibility and easy future upgrades.
Fast Power Response
With a maximum charge and discharge rate of 1P, the system handles short-term high-power demands such as emergency backup and sudden load spikes.
Safe and Reliable Operation
Rated IP55 for protection against dust and water, suitable for both indoor and outdoor installations. The thermal management system has been optimized through simulation and real-world testing, keeping cell temperature differences below 5°C for long-term, stable operation.
| DC Battery Parameters | |
|---|---|
| Cell Type | LFP/120 Ah |
| Battery Pack Configuration | 9.22kWh/1P24S |
| Battery System Configuration | 101.38kWh/1P264S |
| Rated System Voltage | 845Vdc |
| Voltage Range | 739~950Vdc |
| AC Side Parameters | |
| Rated AC Power | 100kW |
| Maximum AC Power | 110kW(for 1 min) |
| AC Current Total Harmonic Distortion (THDi) | ≤3% |
| DC Injection (DC Component) | ＜0.5%Ipn |
| Rated Grid Voltage | 400Vac/3P+N+PE |
| Adjustable Power Factor Range | -1~1 |
| Rated Grid Frequency | 50Hz/60Hz |
| System Parameters | |
| Maximum System Efficiency | ≥89% |
| Charge/Discharge Rate (C-rate) | 0.5P(Optional 1p) |
| Depth of Discharge (DoD) | 95% |
| Cycle Life | ≥ 5,000 cycles |
| Protection Rating | Ethernet /RS485 CE-EMS |
| Cooling Method | IP55 |
| Operating Temperature | Forced air cooling |
| Relative Humidity | 0~95% RH (non-condensing) |
| Altitude | 2000m (Derating above 2000m) |
| Fire Protection System | Smoke/Heat Detection + Aerosol (Pack-level & Cluster-level) + Water Fire Suppression |
| System Dimensions (W × D × H) | 1250*1200*2150mm |
| Weight | 2000kg |
| Compliance Standards | GB/T 36276、GB/T 34120、GB/T 34131 UN38.3、IEC62477、IEC61000、IEC62619、IEC63056、UL9540A 、EN50549 |

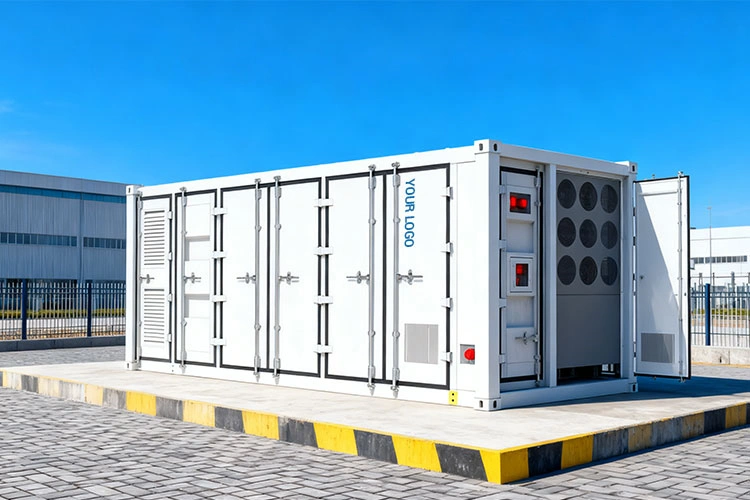

Our liquid-cooled energy storage cabinet can be customized to meet the real requirements of projects across Europe.
Grid Compliance, Country by Country
Designed to meet local interconnection standards including EN 50160 and VDE-AR-N 4110 / 4120, so your system passes utility requirements without added redesign.
Your Brand, Front and Center
Add your company logo to the cabinet exterior or the HMI interface for a consistent, professional project look on site.
Ready for Harsh Environments
Rated IP55 or IP65. Operates from –20°C to +55°C. Optional anti-corrosion coating available for coastal or high-humidity locations.
Plug-and-Play Integration
Supports open protocols like Modbus, CAN, and IEC 61850. Easy to connect with PV systems, generators, or existing energy management systems.
Built around your brand and your site requirements. Fast to deploy. Easy to run.
