| System Configuration | 64.54kWh/1P168S |
| Rated Voltage | 538Vdc |
| PV Voltage | 200Vdc~850Vdc |
| Max. Charge/Discharge Rate | 0.8P |
| Grid Type | 3P+N+PE |
| Cycle Life | ≥ 5,000 cycles |
| Cooling | Forced air cooling |
| Safety/EMC | GB/T 36276、GB/T 34120、GB/T 34131 UN38.3、IEC62477、IEC61000、IEC62619、IEC63056、UL9540A 、EN50549 |

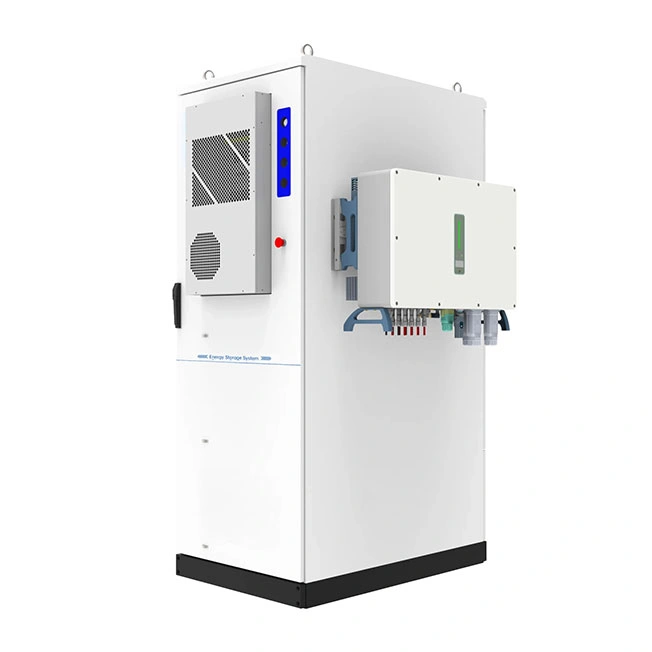

The 64kWh air-cooled solar + storage all-in-one cabinet is built for small commercial and industrial users, community microgrids, rural off-grid power systems, solar + storage + EV charging sites, and telecom base stations with lower energy demand. It delivers a fully integrated commercial battery energy storage solution designed for solar and distributed energy projects in a compact, easy-to-deploy design.
Built around an All-in-One architecture, the system combines a LiFePO₄ battery energy storage system, solar hybrid inverter, intelligent air-cooling thermal management, fire protection system, and industrial control unit into a single cabinet. The compact structure makes installation flexible, even in space-limited locations. The system supports multiple operating modes, including solar self-consumption, peak shaving, and backup power, while allowing room for future capacity expansion.
Cost-Effective Energy Performance
System conversion efficiency exceeds 87%, and battery depth of discharge (DoD) is above 95%, helping maximize energy utilization and improve overall operating returns.
Flexible System Compatibility
Compatible with leading hybrid inverter brands, allowing easy integration with different solar PV system designs and project requirements.

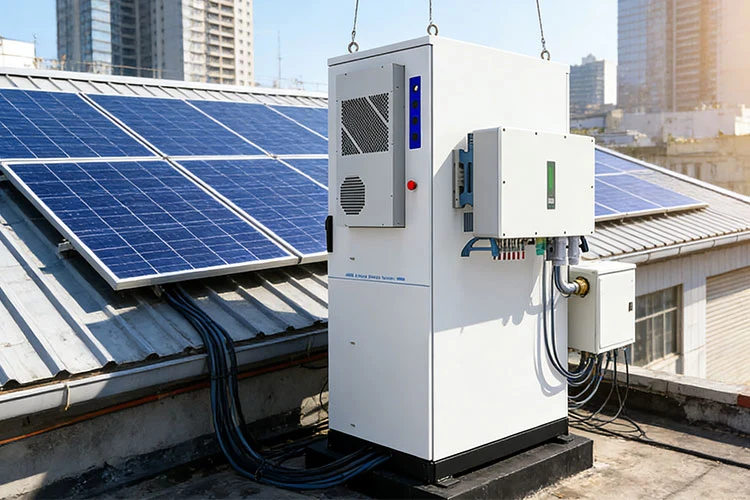

Integrated Solar + Storage Design
Native support for simultaneous solar PV and battery system connection enables efficient energy coordination and improves overall system integration.
Safe and Reliable Operation
IP55-rated enclosure protects against dust and water exposure. Optimized airflow design keeps battery cell temperature differences within 6°C. Multiple built-in safety and fire protection mechanisms support long-term stable operation.
In-House Engineered Core Systems
Battery pack, BMS, and EMS platforms are independently developed, ensuring strong hardware and software coordination, reliable compatibility, and flexible system scalability.
Compact and Space-Saving Layout
With a footprint of just 0.96 m², the cabinet fits standard transportation requirements and allows fast, simple on-site installation, making it ideal for projects with limited available space.
Simple Operation and Maintenance
Supports both local operation and remote monitoring through APP and cloud platforms. Operators can track system performance, alarms, and energy efficiency data in real time.
Scalable System Architecture
Modular design supports parallel connection of multiple units, allowing system capacity to expand smoothly without complex infrastructure upgrades.
The 64kWh air-cooled solar + storage all-in-one cabinet is designed for distributed energy projects that require reliable, flexible, and space-efficient power management.
Small Commercial & Industrial Sites
Supports peak shaving, solar self-consumption, and backup power for small factories, retail stores, warehouses, and business facilities.
Community Microgrids
Helps balance local energy demand, improve solar utilization, and deliver stable power for residential communities and campuses.
Rural and Off-Grid Power
Provides dependable off-grid electricity when paired with solar PV or generators, reducing fuel use and improving power stability in remote areas.

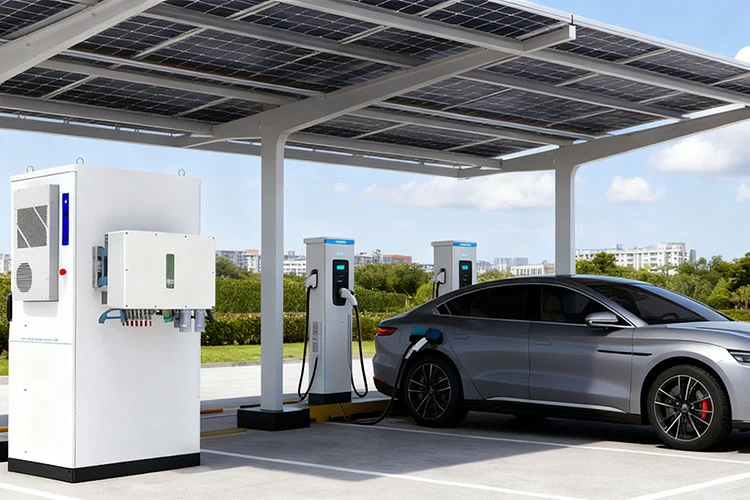

Solar + Storage + EV Charging
Stores solar energy and supports peak charging demand, improving EV charging reliability while lowering grid dependency.
Telecom Base Stations
Ensures continuous and stable backup power for telecom infrastructure while supporting hybrid solar energy integration.
| Battery Input | |
|---|---|
| Cell Type | LFP 120Ah |
| Battery Pack Configuration | 9.22kWh/1P24S |
| Battery System Configuration | 64.54kWh/1P168S |
| Rated System Voltage | 538Vdc |
| Battery Voltage Range | 470Vdc~605Vdc |
| PV Input | |||||
|---|---|---|---|---|---|
| Recommended Maximum Input Power | 37.5kW | 45kW | 54kW | 60kW | 75kW |
| PV Voltage | 200Vdc~850Vdc | ||||
| Number of MPPTs | 4 | ||||
| Maximum Input Current | 30A*4 | ||||
| AC Output | |||||
|---|---|---|---|---|---|
| Rated AC Power | 25kW | 30kW | 36kW | 40kW | 50kW |
| Maximum AC Power | 27.5kVA | 33kVA | 39.6kVA | 44kVA | 55kVA |
| AC Current Total Harmonic Distortion (THDi) | ＜3% | ||||
| DC Injection (DC Component) | ＜0.5%Ipn | ||||
| Rated Grid Voltage | 400Vac/3P+N+PE | ||||
| Adjustable Power Factor Range | -1~1 | ||||
| Rated Grid Frequency | 50Hz | ||||
| General Specifications | ||
|---|---|---|
| Maximum System Efficiency | ≥87% | |
| Charge/Discharge Rate (C-rate) | 0.8P | |
| Battery Depth of Discharge (DoD) | 95% | |
| Cycle Life | ≥5000 | |
| Communication | Ethernet/RS485 | |
| Protection Rating | IP55 | |
| Cooling Method | Forced air cooling | |
| Operating Temperature | -25~55℃ | |
| Relative Humidity | 0~95% RH (non-condensing) | |
| Altitude | 2000m (Derating above 2000m) | |
| Fire Protection System | Aerosol | |
| Dimensions (W × D × H) | 800*1200*2030mm | |
| Weight | 1000kg | |
| Compliance Standards | GB/T 36276、GB/T 34120、GB/T 34131 UN38.3、IEC62477、IEC61000、IEC62619、IEC63056、UL9540A 、EN50549 | |
| Grid Connection Certification | G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1 / EN 50549-10, VDE 0126 / UTE C 15 / VFR:2019,NTS 631 / RD 1699 / RD 244 / UNE 206006 / UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1,TOR,EIFS 2018.2,IEC 62116, IEC 61727 , IEC 60068 , IEC 61683, EN 50530, MEA, PEA, PORTARIA N°140, DE 21 DE MARÇO DE 2022 | |
Our liquid-cooled energy storage cabinet can be customized to meet the real requirements of projects across Europe.
Grid Compliance, Country by Country
Designed to meet local interconnection standards including EN 50160 and VDE-AR-N 4110 / 4120, so your system passes utility requirements without added redesign.
Your Brand, Front and Center
Add your company logo to the cabinet exterior or the HMI interface for a consistent, professional project look on site.
Ready for Harsh Environments
Rated IP55 or IP65. Operates from –20°C to +55°C. Optional anti-corrosion coating available for coastal or high-humidity locations.
Plug-and-Play Integration
Supports open protocols like Modbus, CAN, and IEC 61850. Easy to connect with PV systems, generators, or existing energy management systems.
Built around your brand and your site requirements. Fast to deploy. Easy to run.
