| System Configuration | 2170.3kWh/9P240S |
| Rated Voltage | 768Vdc |
| Rated Output Power | 1125kW |
| Max. Charge/Discharge Rate | 0.5 P |
| Grid Type | 3P+N+PE |
| Cycle Life | ≥ 8,000 cycles |
| Cooling | Liquid Cooling+Forced air cooling |
| Noise | ≤ 80dB |
| Safety/EMC | UN38.3, IEC62477-1, CE/EMC, IEC62619, IEC63056,UL9540A, IEC62933, EN50549 |

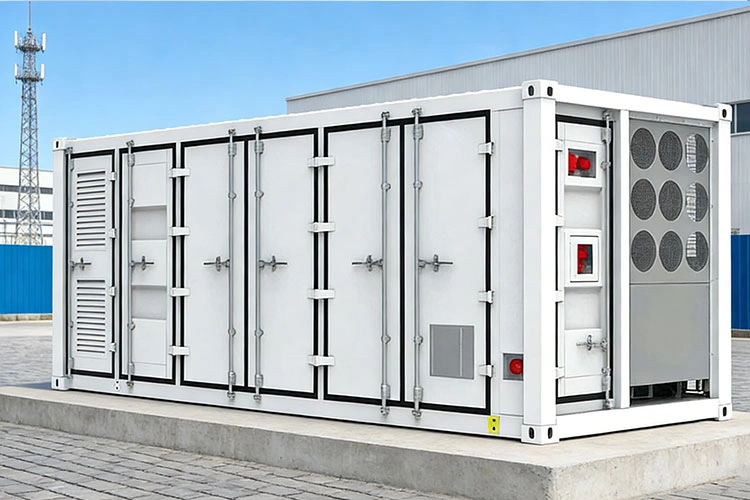

This containerized liquid-cooled energy storage system is purpose-built for large-scale projects that demand MW-level capacity, fast deployment, and seamless integration with renewable energy and microgrid systems.

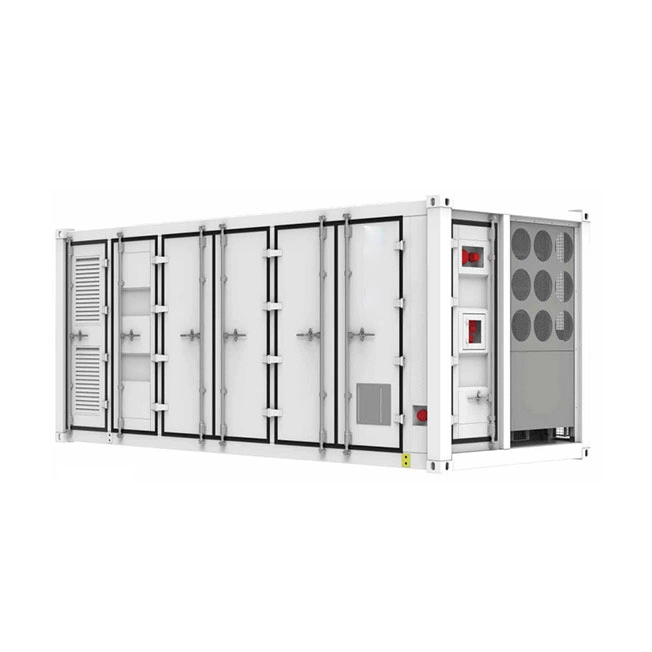

this 2170 kWh liquid-cooled energy storage container is designed for peak shaving, renewable energy storage, microgrids, and grid-side frequency regulation.
The system runs on a 400V architecture and integrates a high-performance PCS, intelligent EMS, reliable BMS, hybrid cooling system, fire protection, and AC combiner cabinet. Powered by 314Ah LFP battery cells, it delivers over 2 MWh of energy inside a standard 20-foot container.
A hybrid liquid + air cooling design keeps cell temperature differences within 3°C, helping the system operate efficiently and reliably over the long term. Each unit is fully assembled and tested before leaving the factory. On site, it’s ready for fast, plug-and-play deployment—shortening delivery time and lowering overall LCOS.

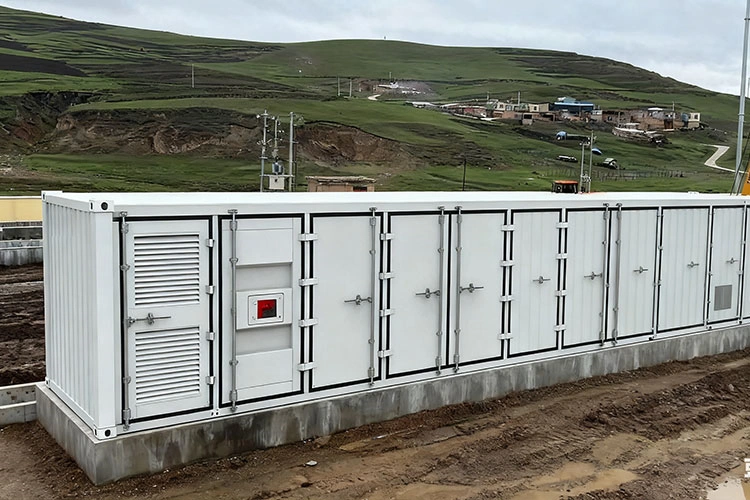

Hybrid Cooling for Stable Performance
The battery packs use liquid cooling, while the PCS is cooled by a dedicated air path. This dual cooling design improves efficiency, reliability, and system lifespan.
String-Level Architecture with Smart Control
Each battery cluster is independently monitored and controlled. Faults can be isolated quickly, improving overall system availability and making maintenance easier.

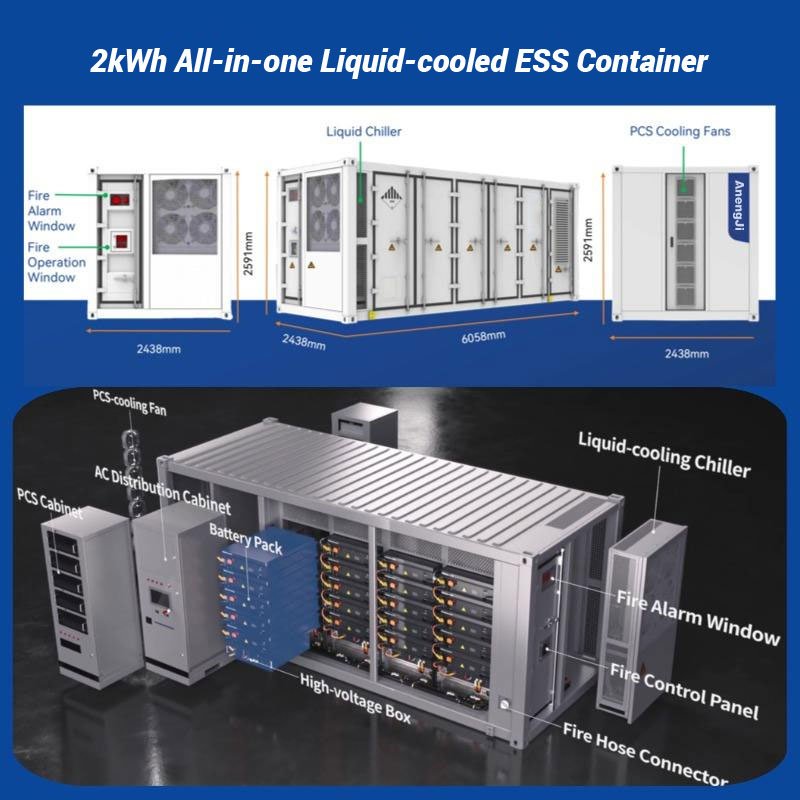

Highly Integrated, Space-Saving Design
BMS, PCS, EMS, cooling, and fire protection are fully integrated into one unit. More than 2 MWh of storage fits inside a standard 20-foot container, reducing site footprint and civil construction costs.

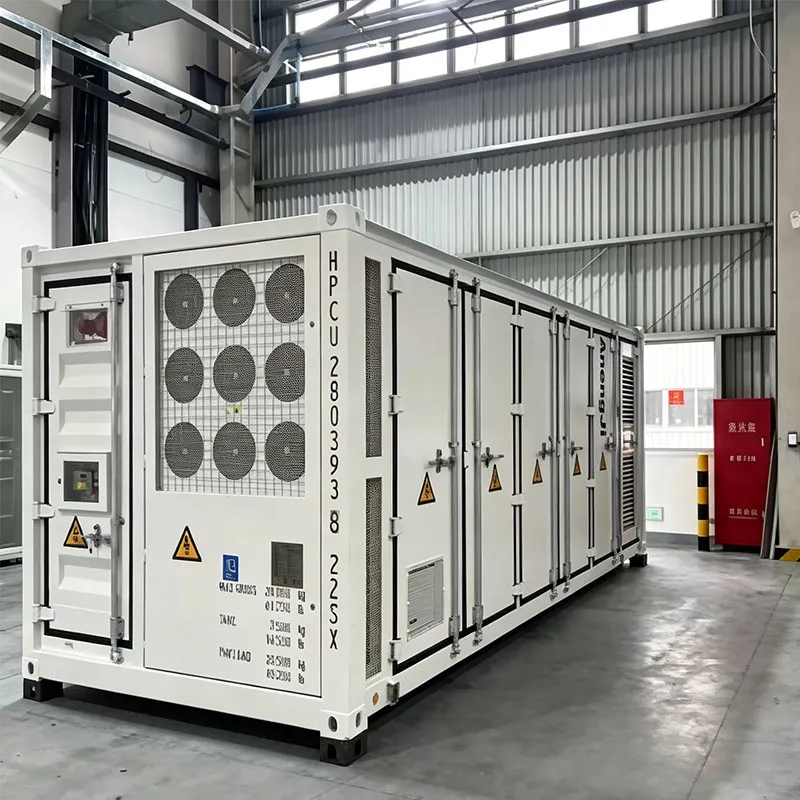

Standard Container for Fast Delivery

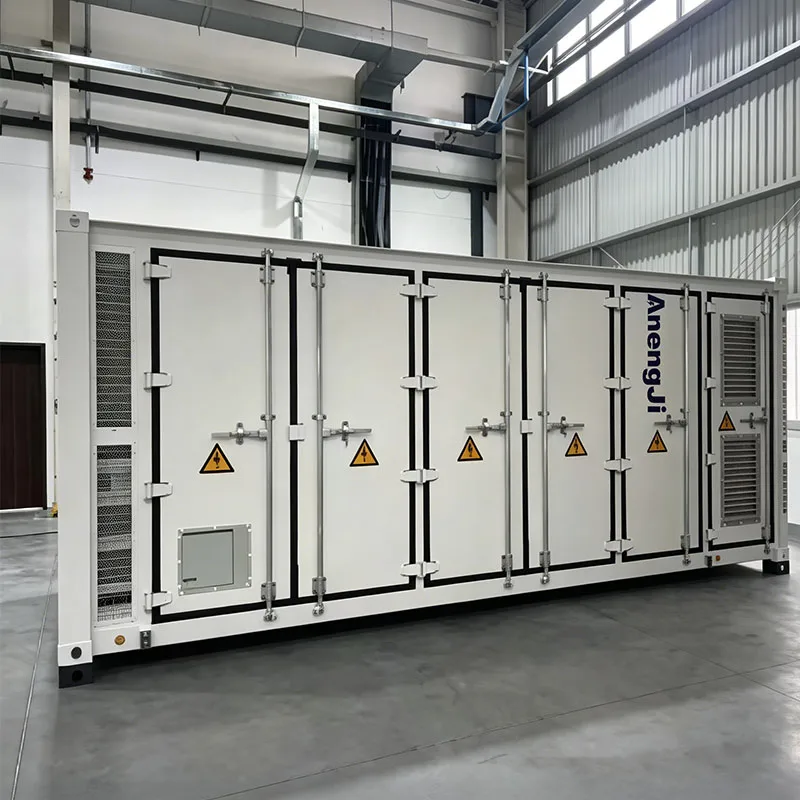

Built on a 20-foot shipping container platform. Pre-installed and pre-commissioned at the factory. On site, only wiring and grid connection are needed, speeding up project timelines and getting systems online faster.
| DC Battery Parameters | |
|---|---|
| Cell Type | LFP/314 Ah |
| Battery Pack Configuration | 48.23kWh/1P48S |
| Pack Protection Rating | IP55 |
| Battery System Configuration | 2170.3kWh/9P240S |
| Rated System Voltage | 768Vdc |
| Voltage Range | 672~864Vdc |
| AC Side Parameters | |
| Rated AC Power | 1125kW(125kW*9) |
| Maximum AC Power | 1237kW(for 1 min) |
| AC Current Total Harmonic Distortion (THDi) | ≤3% |
| DC Injection (DC Component) | ＜0.5%Ipn |
| Rated Grid Voltage | 400Vac/3P+N+PE |
| Adjustable Power Factor Range | -1~1 |
| Rated Grid Frequency | 50Hz/60Hz |
| System Parameters | |
| Maximum System Efficiency | ≥88% |
| Charge/Discharge Rate (C-rate) | 0.5P |
| Depth of Discharge (DoD) | 95% |
| Cycle Life | ≥ 8,000 cycles |
| Protection Rating | Ethernet /RS485 |
| Cooling Method | IP55 |
| Operating Temperature | Forced air cooling |
| Relative Humidity | 0~95% RH (non-condensing) |
| Noise Level | ≤80dB |
| Altitude | 2000m (Derating above 2000m) |
| Fire Protection System | Smoke/Heat Detection + Aerosol (Pack-level & Cluster-level) + Water Fire Suppression |
| System Dimensions (W × D × H) | 6058*2438*2591 (mm) |
| Weight | 25t |
| Compliance Standards | UN38.3, IEC62477-1, CE/EMC, IEC62619, IEC63056,UL9540A, IEC62933, EN50549 |
Our liquid-cooled energy storage cabinet can be customized to meet the real requirements of projects across Europe.
Grid Compliance, Country by Country
Designed to meet local interconnection standards including EN 50160 and VDE-AR-N 4110 / 4120, so your system passes utility requirements without added redesign.
Your Brand, Front and Center
Add your company logo to the cabinet exterior or the HMI interface for a consistent, professional project look on site.
Ready for Harsh Environments
Rated IP55 or IP65. Operates from –20°C to +55°C. Optional anti-corrosion coating available for coastal or high-humidity locations.
Plug-and-Play Integration
Supports open protocols like Modbus, CAN, and IEC 61850. Easy to connect with PV systems, generators, or existing energy management systems.
Built around your brand and your site requirements. Fast to deploy. Easy to run.
