| System Configuration | 241.15 kWh / 1P240S |
| Rated Voltage | 768 VDC |
| Rated Output Power | 125 kW |
| Max. Charge/Discharge Rate | 0.5 P |
| Grid Type | 3W+N+PE |
| Cycle Life | ≥ 8,000 cycles |
| Cooling | Forced air cooling |
| Noise | ≤ 80dB |
| Safety/EMC | GB/T 36276、GB/T 34120、GB/T 34131、 UN38.3、IEC62619、UL1973、UL9540 、CE-EMC |

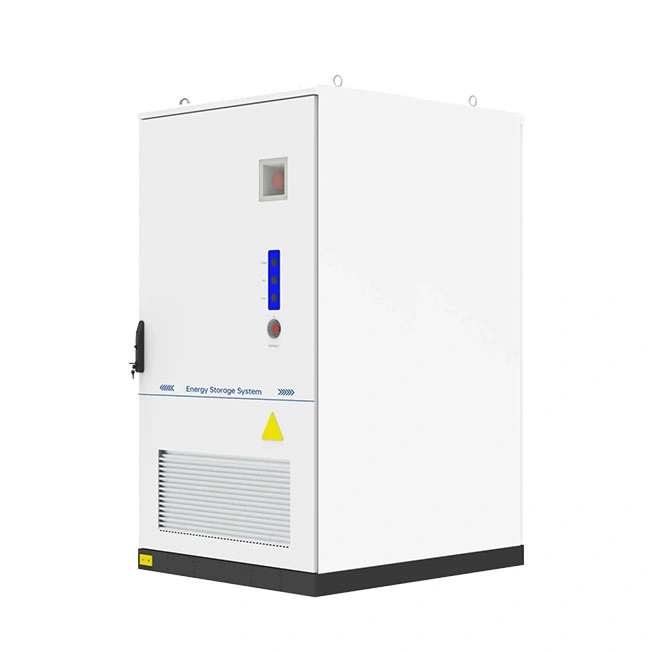

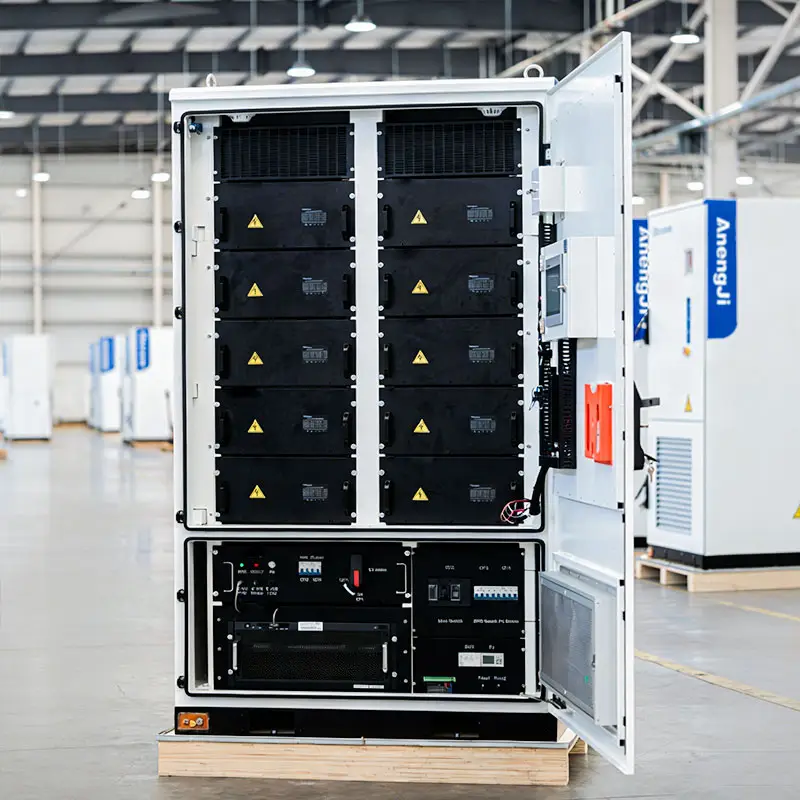

This next-generation air-cooled all-in-one energy storage cabinet brings everything together in a single unit. Long-life battery cells, a high-precision BMS, efficient PCS, intelligent power distribution, active safety protection, and an optimized air-cooling system are fully integrated inside one cabinet.
It’s built for true plug-and-play deployment. The system supports AC-side parallel connection, making it easy to scale from hundreds of kW to multi-MW energy storage installations. Designed for long-term operation, it delivers safe, stable, and reliable performance in real project environments.
Cost-Effective Performance
System conversion efficiency reaches ≥89%, with battery depth of discharge over 95%. More usable energy. Better return on every installation.
Reliable Thermal Control
An optimized airflow design keeps cell temperature differences within about 5°C across the cabinet, protecting battery consistency over time. Rated IP55, suitable for a wide range of outdoor conditions.
Built-In Safety
Equipped with pack-level fire detection and an automatic aerosol fire suppression system to reduce the risk of thermal spread and thermal runaway.
Flexible Expansion
The modular architecture allows multiple cabinets to run in parallel on the AC side, making capacity and power expansion simple and fast.
Fully In-House Developed
Core systems including PACK, BMS, PCS, and EMS are developed in-house. Hardware and software work seamlessly together, ensuring strong compatibility and fast system updates.
Smart Operation & Maintenance
Powered by a proprietary cloud platform with app-based remote monitoring, real-time data visualization, and fault alerts. A local HMI is also included for on-site control and easy maintenance.
| DC Battery Parameters | |
|---|---|
| Cell Type | LFP/314 Ah |
| Battery Pack Configuration | 24.12 kwh/1P24S |
| Pack Protection Rating | IP55 |
| Battery System Configuration | 241.15kwh/1P240S |
| Rated System Voltage | 768Vdc |
| Voltage Range | 672~864Vdc |
| AC Side Parameters | |
| Rated AC Power | 125kW |
| Maximum AC Power | 137.5kW(for 1 min) |
| AC Current Total Harmonic Distortion (THDi) | ≤3% |
| DC Injection (DC Component) | ＜0.5%Ipn |
| Rated Grid Voltage | 400Vac/3P+N+PE |
| Adjustable Power Factor Range | -1~1 |
| Rated Grid Frequency | 50Hz/60Hz |
| System Parameters | |
| Maximum System Efficiency | ≥89% |
| Charge/Discharge Rate (C-rate) | 0.5P |
| Depth of Discharge (DoD) | 95% |
| Cycle Life | ≥ 8,000 cycles |
| Communication Interfaces | ＜100ms |
| Protection Rating | Ethernet /RS485 |
| Cooling Method | IP55 |
| Operating Temperature | Forced air cooling |
| Relative Humidity | 0~95% RH (non-condensing) |
| Noise Level | ≤80dB |
| Altitude | 2000m (Derating above 2000m) |
| Fire Protection System | Smoke/Heat Detection + Aerosol (Pack-level & Cluster-level) + Water Fire Suppression |
| System Dimensions (W × D × H) | 1250*1450*2250（mm） |
| Weight | 2500kg |
| Compliance Standards | GB/T 36276、GB/T 34120、GB/T 34131 UN38.3、IEC62477、IEC61000、IEC62619、IEC63056、UL9540A 、EN50549 |
Our liquid-cooled energy storage cabinet can be customized to meet the real requirements of projects across Europe.
Grid Compliance, Country by Country
Designed to meet local interconnection standards including EN 50160 and VDE-AR-N 4110 / 4120, so your system passes utility requirements without added redesign.
Your Brand, Front and Center
Add your company logo to the cabinet exterior or the HMI interface for a consistent, professional project look on site.
Ready for Harsh Environments
Rated IP55 or IP65. Operates from –20°C to +55°C. Optional anti-corrosion coating available for coastal or high-humidity locations.
Plug-and-Play Integration
Supports open protocols like Modbus, CAN, and IEC 61850. Easy to connect with PV systems, generators, or existing energy management systems.
Built around your brand and your site requirements. Fast to deploy. Easy to run.
