| Rated Voltage | 400V |
| Grid/Off-grid Switching Time | ≤20s |
| Humidity | 0–95% RH, Non-condensing |
| Cooling Method | Air Cooling |
| Protection Rating | IP55 |
| Operating Altitude | ≤2000 m (Derating Above 2000 m) |
| Grid Type | 3W+N+PE |

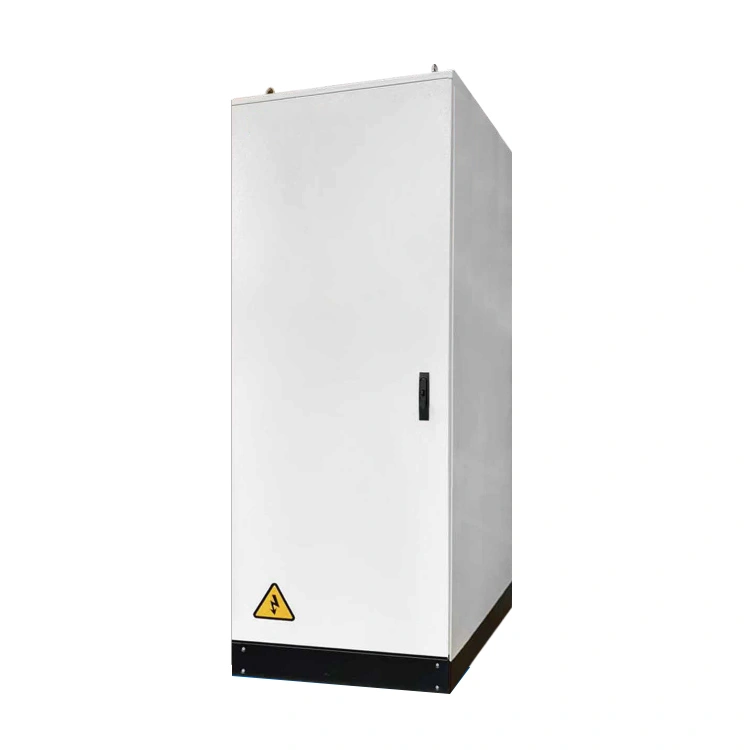

The Low-Voltage Energy Storage Grid-Tie Cabinet is the critical interface between battery energy storage systems and the low-voltage distribution grid. Designed for commercial and industrial applications, it ensures safe, intelligent, and efficient grid connection.
This cabinet integrates AC power collection, bidirectional energy metering, grid connection and disconnection control, auxiliary power supply, and 4G remote monitoring. Supporting up to six AC inputs, it can seamlessly pair with mainstream all-in-one energy storage cabinets.
With an IP55-rated enclosure, it is suitable for outdoor installation. Flexible customization options—including cabinet size, rated power, and core component selection—make it ideal for solar + storage, wind + storage, and hybrid energy projects.

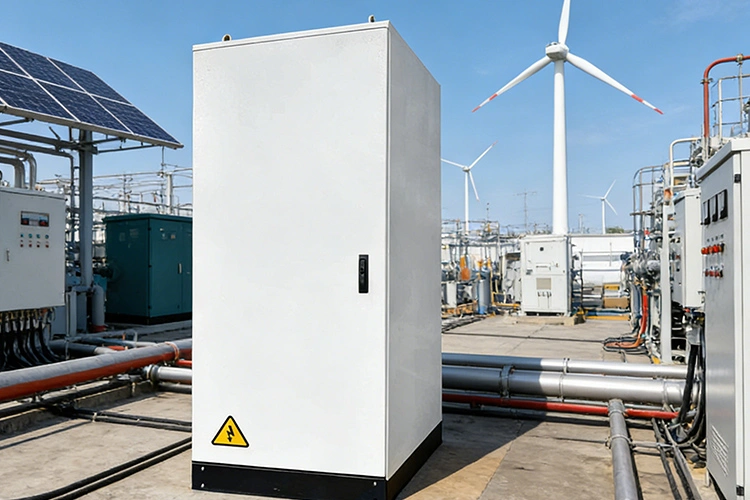

Multi-Layer Electrical Protection
Built-in overcurrent, overvoltage, short circuit, and reverse current protection ensures both the grid side and user side are safe.
High Environmental Resilience
IP55-rated enclosure with optimized cooling design provides dust, water, and thermal stability for long-term outdoor operation.
Strong Renewable Energy Compatibility
Seamlessly connects to solar PV, wind turbines, and other distributed energy systems for hybrid storage applications.
Deep Customization Options
Cabinet dimensions, rated current/power, and core component brands—such as MCCBs, frame switches, and UPS—can be tailored to each project.

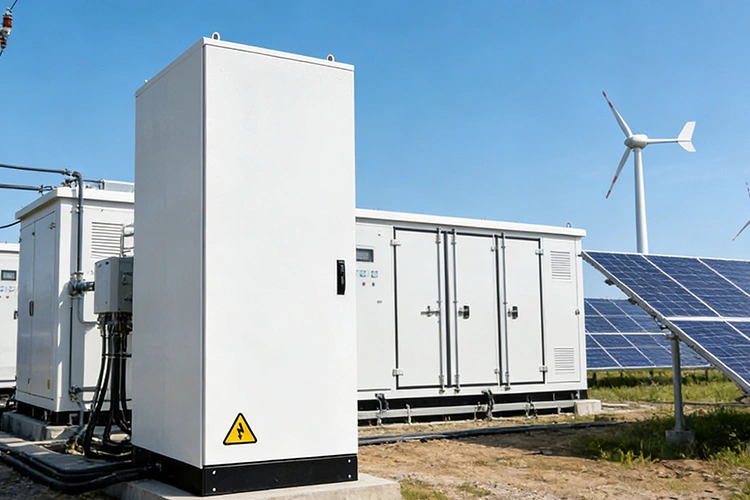

The Low-Voltage Energy Storage Grid-Tie Cabinet is used in a variety of real-world projects:
| Electrical Parameters | |
|---|---|
| Rated Voltage | Main Circuit: 400 V; Auxiliary Circuit: AC 230 V |
| Rated Insulation Voltage | Main Circuit: 690 V / 1000 V |
| Power Factor Adjustment Range | Power Factor: 0.95 (lagging) to 0.95 (leading), automatic compensation |
| Structural Parameters | |
| Protection Rating | IP55 |
| Cabinet Material | Cold-rolled Steel Plate with Anti-corrosion Surface Treatment |
| Heat Dissipation Design | Air Cooling |
| Form of Internal Separation | Supports Form 1, 2b, 3b, 4 Internal Separation, compliant with internal arc protection standard (≥65 kA / 0.3 s) |
| Protection Functions | |
| Basic Protection | Overcurrent, Overvoltage, Short Circuit, and Anti-backflow Protection, Response Time ≤ 20 ms |
| Grounding Protection | Leakage Protection and Ground Fault Protection, Adjustable Trip Threshold |
| Internal Arc Withstand Capability | Withstand ≥ 65 kA / 0.3 s, compliant with IEC 61641 V3 |
| Monitoring and Metering | |
| Measurement Accuracy | Voltage/Current: Class 0.5; Active/Reactive Power: Class 0.5; Energy Metering: Class 0.5 |
| Monitoring Parameters | Real-time Display of Three-phase Voltage, Current, Power Factor, Harmonics (THD ≤ 5%), Energy and Demand Data |
| Communication Protocols | MODBUS TCP, Supports 4G Wireless Communication |
| Environmental Adaptability | |
| Operating Temperature | -5°C to +40°C, 24-hour Average Temperature ≤ 35°C |
| Relative Humidity | ≤95% (at 20°C), Non-condensing |
| Altitude | ≤2000 m (Derating Required Above 2000 m) |
Our liquid-cooled energy storage cabinet can be customized to meet the real requirements of projects across Europe.
Grid Compliance, Country by Country
Designed to meet local interconnection standards including EN 50160 and VDE-AR-N 4110 / 4120, so your system passes utility requirements without added redesign.
Your Brand, Front and Center
Add your company logo to the cabinet exterior or the HMI interface for a consistent, professional project look on site.
Ready for Harsh Environments
Rated IP55 or IP65. Operates from –20°C to +55°C. Optional anti-corrosion coating available for coastal or high-humidity locations.
Plug-and-Play Integration
Supports open protocols like Modbus, CAN, and IEC 61850. Easy to connect with PV systems, generators, or existing energy management systems.
Built around your brand and your site requirements. Fast to deploy. Easy to run.
