A 1MWh Battery Energy Storage System is an ideal solution for commercial and industrial facilities seeking peak shaving, backup power, and renewable energy integration.

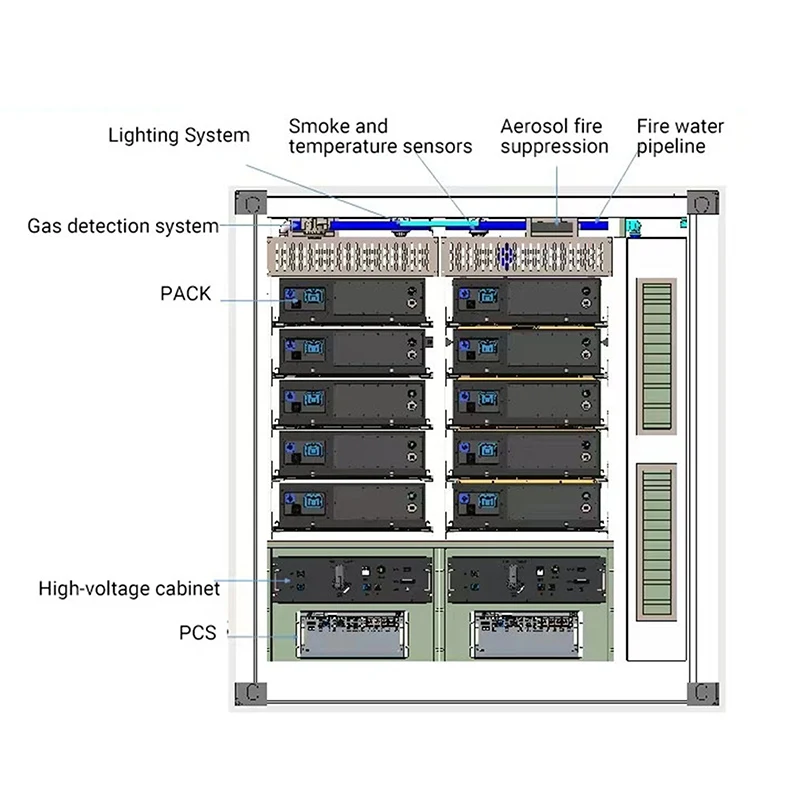

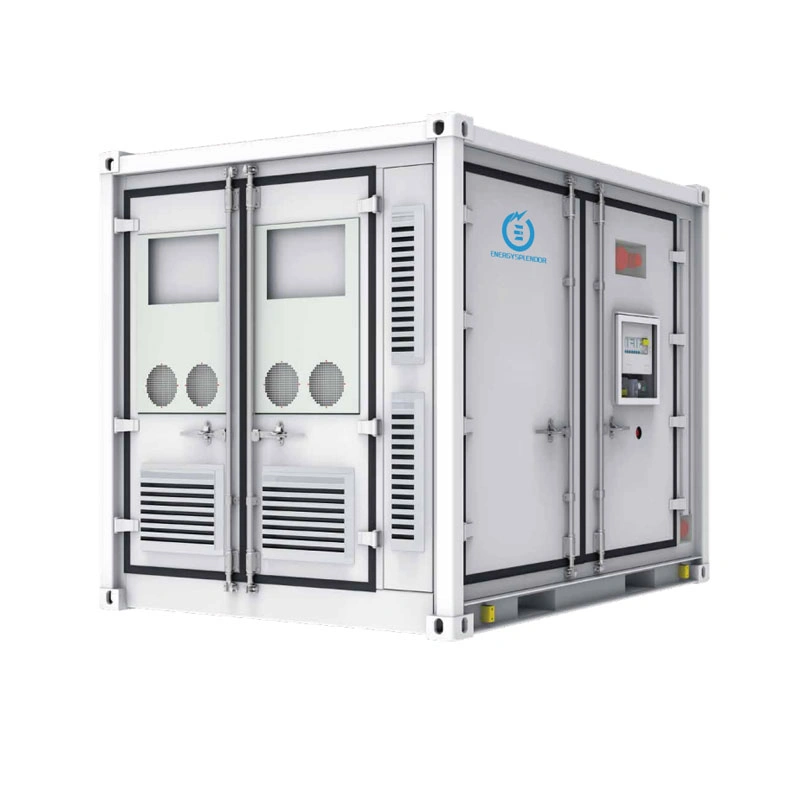

The E10FT1044LP-2 is a fully integrated 1.044MWh containerized Battery Energy Storage System (BESS) designed for commercial and industrial applications. Operating at a rated voltage of 400V, the system integrates battery packs, BMS/EMS/PCS control systems (3S), liquid cooling, fire protection, and Static Transfer Switch (STS) technology into a compact 10ft container.
Designed to support Solar + Storage + Diesel Generator hybrid applications, the system delivers a safe, flexible, and turnkey energy storage solution for peak shaving, backup power, microgrids, and renewable energy integration.
Flexible On-Grid and Off-Grid Operation
The system can be seamlessly integrated with POC cabinets, EPS cabinets, and STS cabinets, supporting both grid-connected and off-grid operating modes. This enables flexible energy management and reliable operation in complex microgrid environments.
Fully Integrated Plug-and-Play Design
The system integrates battery management, energy management, liquid cooling, and multi-level fire protection into a single pre-engineered solution. Factory pre-assembly and testing significantly reduce on-site installation time, commissioning effort, and project costs.
UPS-Level Backup Power with 20ms Transfer Time
Equipped with a high-performance STS, the system can switch between grid and off-grid operation within 20 milliseconds during grid disturbances, providing UPS-level power continuity for critical loads, sensitive equipment, and production lines.
Advanced Safety and Battery Management
The independent battery cluster management architecture enables real-time monitoring, dynamic balancing, and rapid fault isolation. This improves operational safety, maximizes usable battery capacity, and extends system service life.
Peak Shaving & Energy Cost Reduction
Store electricity during off-peak hours and discharge during peak demand periods to reduce energy costs, optimize electricity bills, and defer transformer capacity upgrades.
Off-Grid and Remote Microgrids
Ideal for mining sites, islands, rural communities, and other weak-grid or off-grid locations. Combined with solar PV and diesel generators, the system reduces fuel consumption and improves energy independence.
Emergency Backup Power
Provides ultra-fast backup power for data centers, telecommunications infrastructure, hospitals, commercial facilities, and precision manufacturing plants, ensuring uninterrupted business operations.
Renewable Energy Integration & Grid Support
Mitigates solar and wind power intermittency, improves power quality, enhances grid stability, and increases the local consumption of renewable energy.
| Battery Side | |
|---|---|
| Communication Interfaces | ＜100ms |
| Cell Type | LFP/314 Ah |
| Pack Configuration | 52.2 kwh/1P52S |
| System Configuration | 1044 kWh/4P260S |
| Rated DC Voltage | 832V |
| DC Voltage Range | 728 ～936V |
| Max. Charge/Discharge Rate | 728 ～936V |
| Max. Depth of Discharge | 100%(25±2°C) |
| Grid Side | |
| Rated Output Power | 500kW |
| Max. Apparent Power | 550 kVA |
| Rated AC Voltage | 400 V |
| AC Voltage Range | ±15% |
| Grid Type | 3W+N+PE |
| Rated Frequency | 50Hz/60Hz |
| On/off-grid Switching Time | <20 ms |
| Power Factor | 0.99/-1～+1 |
| THDi | ≤3% |
| DC Ratio | <0.5%lpn |
| Backup Side | |
| Max. PV Inverter Input Current | 800A |
| Max. Diesel Generator Input Current | 800A |
| Max. Backup Load Port Current | 800A |
| Recommended Max. Backup Load Power* | 350 kW (70% of Rated Output Power) |
| Protection Rating | |
| Cycle Life | ≥ 8,000 cycles |
| Communication | Modbus TCP/IP |
| Fire Suppression System | Aerosol system (pack level and container level), water spray system |
| Ingress Rating | IP54 |
| Cooling | Liquid cooling+Forced air cooling |
| Operating Temperature | -25°C~55°C (Derating after 45°C) |
| Anticorrosion Rating | C4 (C5 optional) |
| Humidity | C4 (C5 optional) |
| Noise | ≤80 dB |
| AItitude | 3000m (Derating above 2000m) |
| Dimensions (W*D*H) | 2991*2438*2591mm |
| Weight | 14t |
| Certification | UN38.3, IEC62477-1, CE/EMC, IEC62619, IEC63056, UL9540A, EN50549 |
Our liquid-cooled energy storage cabinet can be customized to meet the real requirements of projects across Europe.
Grid Compliance, Country by Country
Designed to meet local interconnection standards including EN 50160 and VDE-AR-N 4110 / 4120, so your system passes utility requirements without added redesign.
Your Brand, Front and Center
Add your company logo to the cabinet exterior or the HMI interface for a consistent, professional project look on site.
Ready for Harsh Environments
Rated IP55 or IP65. Operates from –20°C to +55°C. Optional anti-corrosion coating available for coastal or high-humidity locations.
Plug-and-Play Integration
Supports open protocols like Modbus, CAN, and IEC 61850. Easy to connect with PV systems, generators, or existing energy management systems.
Built around your brand and your site requirements. Fast to deploy. Easy to run.
