| System Configuration | 261 kWh / 1P260S |
| Rated Voltage | 832 VDC |
| Rated Output Power | 125 kW |
| Max. Charge/Discharge Rate | 0.5 P |
| Grid Type | 3W+N+PE |
| Cycle Life | ≥ 8,000 cycles |
| Cooling | Liquid cooling+Forced air cooling |
| Noise | ≤ 75dB |
| Safety/EMC | UN38.3, IEC62619, IEC63056, IEC62477-1, IEC61000-6-2/4, UL9540A |

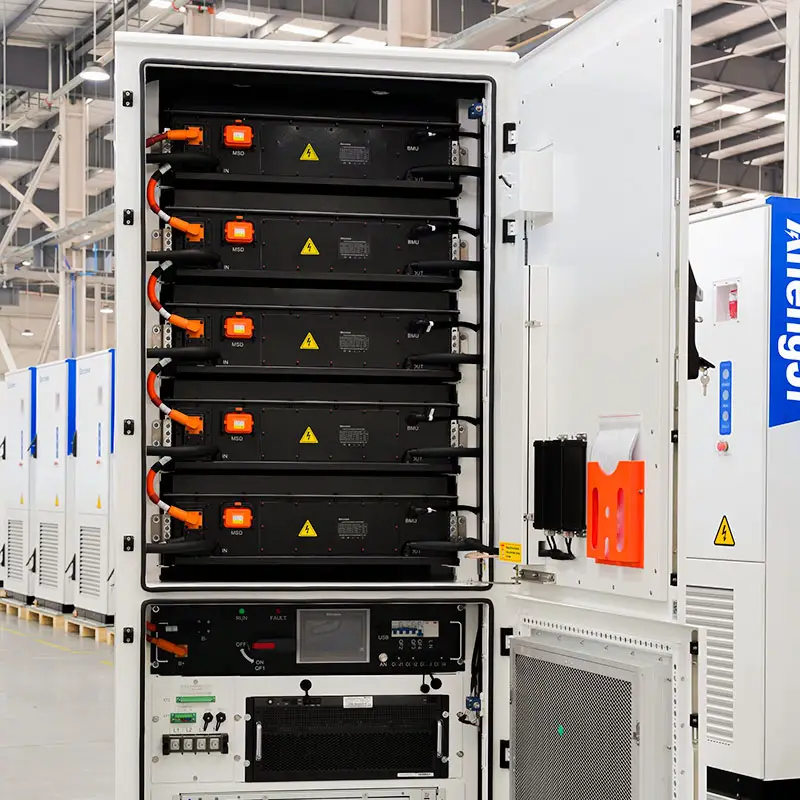

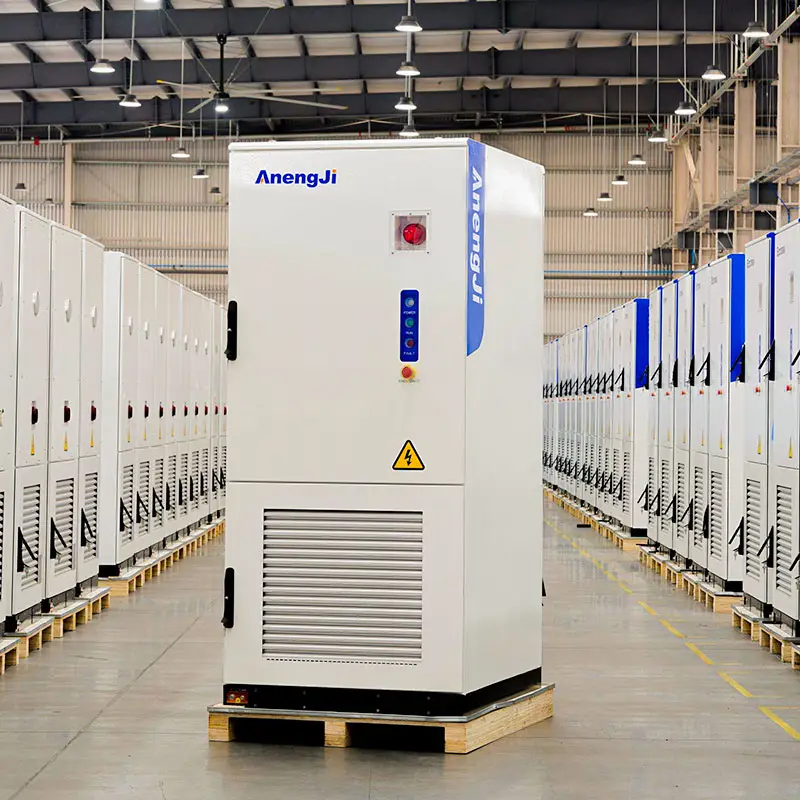

This liquid-cooled energy storage cabinet is purpose-built for commercial and industrial use. It features an advanced, independent liquid cooling system in each cabinet along with intelligent thermal management. The temperature difference between battery cells is kept within 3°C across the entire unit, which greatly improves battery consistency, operating stability, and overall lifespan.
The modular design allows flexible parallel expansion to match different power demands. With higher energy density, the system delivers more storage capacity within a limited footprint, significantly improving the cost-effectiveness, safety, and deployment efficiency of commercial and industrial energy storage projects.
Compact Footprint
Takes up just 1.4 m². Small, tight, and easy to move. Simple to transport, lift, and install—even in tight spaces where every square foot counts.
High Integration
Up to 261 kWh in a single cabinet. Industry-leading energy density. Longer discharge time and better return from the same installation space.
Efficient Cooling
Precision-designed pack-level liquid cooling channels keep temperatures tightly controlled. The temperature difference across the cabinet stays under 3°C, protecting cell consistency and reducing overall system energy use.
Long Cycle Life
Rated for 8,000+ cycles (@80% DoD). Slower degradation. More usable life. Stronger returns over the full project lifecycle.
Flexible Expansion
Cabinets connect seamlessly side by side for easy scaling—from hundreds of kW to multi-MW systems. Compatible with multiple grid standards, making it easy to deploy across a wide range of commercial and industrial sites.
Built-In Safety
Equipped with pack-level fire detection and an integrated aerosol fire suppression system. Designed to stop thermal spread and prevent thermal runaway before it becomes a risk.
| DC Battery Parameters | |
|---|---|
| Cell Type | LFP/314 Ah |
| Battery Pack Configuration | 52.2 kwh/1P52S |
| Pack Protection Rating | IP65 |
| Battery System Configuration | 261.25kwh/1P260S |
| Rated System Voltage | 832Vdc |
| Voltage Range | 728~936Vdc |
| AC Side Parameters | |
| Rated AC Power | 125kW |
| Maximum AC Power | 137kW |
| AC Current Total Harmonic Distortion (THDi) | ≤3% |
| DC Injection (DC Component) | ＜0.5%Ipn |
| Rated Grid Voltage | 400Vac/3P+N+PE |
| Adjustable Power Factor Range | -1~1 |
| Rated Grid Frequency | 50Hz/60Hz |
| System Parameters | |
| Maximum System Efficiency | 89% |
| Charge/Discharge Rate (C-rate) | 0.5P |
| Depth of Discharge (DoD) | 95% |
| Cycle Life | ≥ 8,000 cycles |
| Communication Interfaces | ＜100ms |
| Protection Rating | Ethernet /RS485 |
| Cooling Method | IP55 |
| Operating Temperature | Liquid cooling+Forced air cooling |
| Relative Humidity | 0~95% RH (non-condensing) |
| Noise Level | ≤75dB |
| Altitude | 3000m (Derating above 2000m) |
| Fire Protection System | Smoke/Heat Detection + Aerosol (Pack-level & Cluster-level) + Water Fire Suppression |
| System Dimensions (W × D × H) | 1050*1350*2400mm |
| Weight | 2620kg |
| Compliance Standards | GB/T 36276、GB/T 34120、GB/T 34131 UN38.3、IEC62477、IEC61000、IEC62619、IEC63056、UL9540A 、EN50549 |
Our liquid-cooled energy storage cabinet can be customized to meet the real requirements of projects across Europe.
Grid Compliance, Country by Country
Designed to meet local interconnection standards including EN 50160 and VDE-AR-N 4110 / 4120, so your system passes utility requirements without added redesign.
Your Brand, Front and Center
Add your company logo to the cabinet exterior or the HMI interface for a consistent, professional project look on site.
Ready for Harsh Environments
Rated IP55 or IP65. Operates from –20°C to +55°C. Optional anti-corrosion coating available for coastal or high-humidity locations.
Plug-and-Play Integration
Supports open protocols like Modbus, CAN, and IEC 61850. Easy to connect with PV systems, generators, or existing energy management systems.
Built around your brand and your site requirements. Fast to deploy. Easy to run.
