📊 2026 Cost Snapshot & Executive Summary

Navigating the grid scale battery storage cost landscape in 2026 can be tricky because advertised factory battery prices rarely match final turnkey EPC quotes. The table below outlines the current global pricing ranges for utility-scale battery energy storage systems (BESS):

Turnkey CAPEX Range (4-Hour BESS): $110 – $145 / kWh (Global Average, ex-US/China) | $180 – $240 / kWh (US Market)
Bare DC Battery Block (314Ah LFP): $65 – $80 / kWh (Factory Gate)
Levelized Cost of Storage (LCOS): $65 – $88 / MWh (Dependent on cycle life and grid tie fees)
Power Rating Metric ($/kW vs $/kWh): $/kW reflects inverter/PCS power capacity; $/kWh reflects stored energy volume. Longer duration (4h–8h) significantly lowers $/kWh figures.

*Note: Actual project cost varies by battery chemistry, duration, PCS rating, EPC scope, grid interconnection, location, and regulatory requirements.

What Is the Average Grid Scale Battery Storage Cost in 2026?

If you are developing a utility-scale solar-plus-storage site or evaluating grid stabilization investments this year, you have likely noticed that the market is dropping mixed signals. On one hand, battery cell overcapacity in China has pushed raw hardware prices to historical lows. On the other hand, high-voltage transformers, local EPC labor, and local grid connection backlogs continue to eat away at developer margins.

Understanding the real utility scale battery storage cost requires separating core equipment from total installed capital expenditure. When engineering procurement teams analyze a project, we look at three distinct pricing vectors: cost per kilowatt-hour ($/kWh), cost per megawatt-hour ($/MWh), and power capacity rating ($/kW).

Grid Scale Battery Storage Cost per kWh

The metric grid scale battery storage cost per kwh is the primary unit used to measure energy capacity cost. It indicates how much you pay for each unit of stored electricity. For instance, comparing a 100 MW / 200 MWh system against a 100 MW / 400 MWh system reveals that while both share the same 100 MW power hardware (PCS and transformers), the 4-hour (400 MWh) system achieves a significantly lower per-kWh turnkey cost because fixed civil and balance-of-plant expenses are spread across twice the capacity.

Grid Scale Battery Storage Cost per MWh

Large utility developers frequently express overall project economics using grid scale battery storage cost per mwh or overall Levelized Cost of Storage (LCOS). In 2026, wholesale energy storage procurement quotes at the MWh scale for DC blocks hover around $65,000 to $85,000 per MWh ($65–$85/kWh), whereas full turnkey EPC costs land between $115,000 and $145,000 per MWh in cost-competitive international markets.

Battery Storage Cost per MW vs per MWh

Key Metric Distinctions:

$/kW (or $/MW): Measures Power Capacity. Dictated by inverters (PCS), switchgear, transformers, and grid connection limits.
$/kWh (or $/MWh): Measures Energy Storage Volume. Dictated by battery cell chemistry, rack density, enclosures, and discharge duration.

Grid Scale Battery Storage Cost by System Type

Pricing structures change drastically as you move from residential wall batteries up to multi-gigawatt grid installations. You cannot scale a 10 kWh residential quote up to a 100 MWh utility project using a simple linear calculation.

Residential Battery Storage Cost

Residential BESS typically costs $450 to $700 per kWh installed. High retail distribution markups, single-phase hybrid inverters, complex home electrical rewiring, and electrician labor drive up these costs. They operate in a completely different financial realm than utility assets.

Commercial and Industrial Battery Storage Cost

Commercial and Industrial (C&I) systems (ranging from 100 kWh outdoor cabinets to 5 MWh containerized systems) average between $220 and $350 per kWh. C&I projects must account for localized fire codes, factory EMS integration, transformer upgrades, and site civil works, though they benefit from standardized modular design.

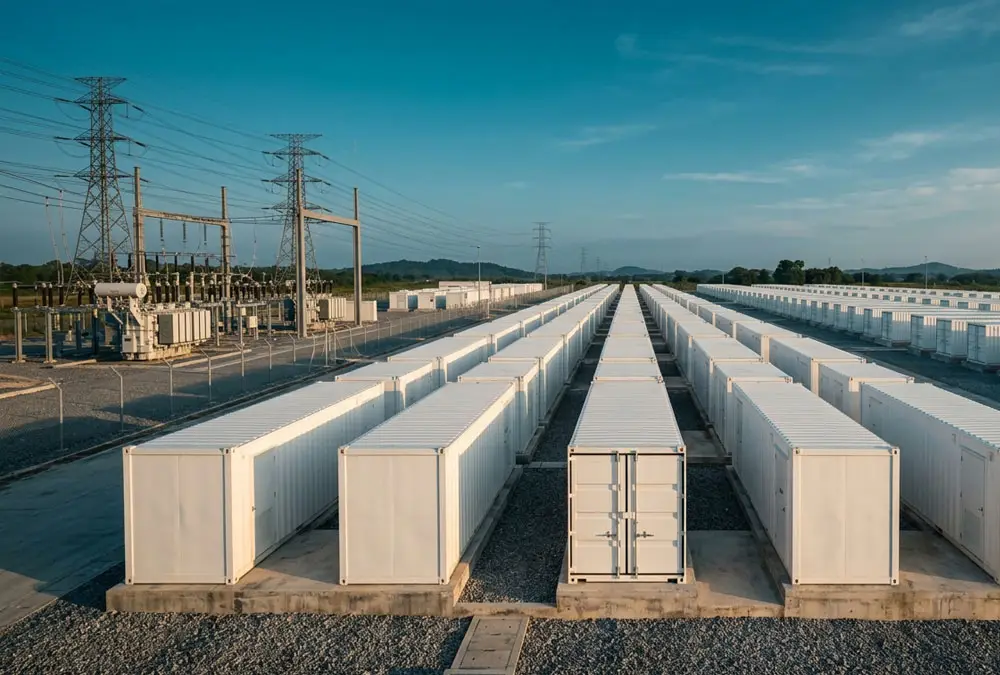

Utility-Scale Grid Battery Storage Cost

At the utility tier (10 MWh to 500+ MWh), bulk hardware purchasing, high-voltage liquid-cooled 20ft/40ft containers, and 33kV/138kV grid tie-ins bring turnkey prices down to the $115–$145/kWh benchmark. Here, battery energy storage system pricing benefits heavily from high cell-packing density and streamlined EPC deployment.

What Makes Up the Total Grid Scale Battery Storage Cost?

Buyers often ask why a $65/kWh battery block quote transforms into a $130/kWh installed system. The answer lies in the total BESS CAPEX breakdown. Below is a detailed breakdown of a typical 4-hour utility storage project budget.

Component Subsystem	Typical Cost Share (%)	Cost Range ($/kWh)	What Is Included	Buyer Impact & Selection Advantage
DC Battery System	50% – 55%	$65 – $80	LFP cells (314Ah), racks, internal BMS, DC cabling, container enclosure.	Choosing 314Ah+ cells cuts footprint by 15% and reduces initial DC hardware expenditure.
Power Conversion (PCS) & Elect.	15% – 18%	$18 – $24	Bi-directional inverters, step-up MV transformers, switchgear, protection relays.	High-efficiency central PCS reduces conversion losses, boosting round-trip efficiency (RTE).
Thermal & Safety Systems	6% – 8%	$8 – $12	Liquid cooling chillers, aerosol/gas fire suppression, gas detection, deflagration vents.	Advanced liquid cooling extends cell cycle life by 20% compared to traditional HVAC air cooling.
EMS, SCADA & Controls	3% – 5%	$4 – $7	Energy Management System software, site controller, grid telemetry, cloud monitoring.	Smart EMS enables multi-revenue stacking (arbitrage + frequency control) to maximize IRR.
EPC, Civil Works & Grid Tie	20% – 25%	$25 – $40	Foundation pads, trenching, labor, permitting, substation upgrades, interconnection fees.	Turnkey EPC contracts mitigate site integration risks and eliminate unexpected engineering cost overruns.

Battery Cells and DC Battery System

The DC system is the single largest cost driver. However, cell price declines do not translate into an equivalent percentage drop for the whole project. A 20% drop in cell cost only reduces total project CAPEX by roughly 10% because civil engineering, transformers, and site installation costs remain unaffected by raw chemical price trends.

Power Conversion System and Electrical Equipment

The PCS converts DC power from cells to AC power for the grid. Selecting grid-forming inverters adds a small initial hardware premium, but it unlocks valuable ancillary service revenue streams like synthetic inertia and black-start capabilities.

Thermal Management and Fire Protection

Modern energy storage systems rely heavily on liquid cooling over forced air. Liquid cooling maintains cell-to-cell temperature differentials within 2.5°C, significantly reducing degradation and preventing premature capacity loss.

EMS, SCADA and Monitoring Systems

Without a robust EMS, a utility battery is just passive hardware. The EMS decides when to charge during low-cost solar hours and discharge during peak demand hours, directly controlling your project’s financial payback period.

💡 Commercial & Industrial Product Spotlights: Balancing CAPEX and Operational Needs

If your organization is evaluating industrial peak-shaving or solar integration projects, choosing the right modular enclosure size prevents over-provisioning balance-of-plant equipment:

261 kWh Outdoor All-in-One Cabinet (Liquid-Cooled)

Core Value: Factory-integrated PCS, liquid chiller, and fire suppression in a compact footprint. Ideal for commercial factories seeking demand charge reduction without complex civil foundation construction.

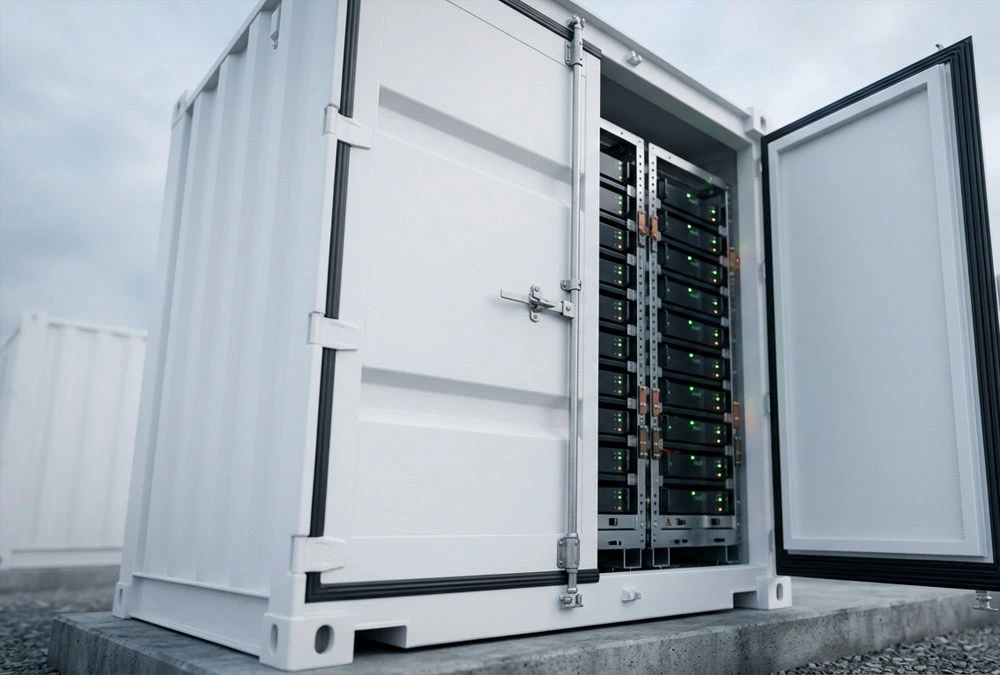

1 MWh / 3.44 MWh Modular Containerized Utility Blocks

Core Value: High-density 20ft container design utilizing 314Ah LFP cells. Perfect for utility-scale solar shifting and microgrid applications, offering plug-and-play field installation that lowers overall EPC installation expenses.

Battery Price vs Turnkey BESS Cost: What Buyers Actually Pay For

A common point of confusion during B2B procurement arises when comparing battery hardware quotes against complete utility scale BESS project cost numbers.

Battery Hardware Cost

Hardware cost represents the FOB (Free on Board) price of the DC container leaving the factory. It covers cells, racks, internal piping, and basic enclosure protection.

PCS and Balance-of-System Cost

BOS includes everything outside the DC box: step-up transformers, medium-voltage switchgear, auxiliary power supplies, and external communications.

EPC and Installation Cost

Engineering, Procurement, and Construction (EPC) teams handle site preparation, concrete foundation pads, underground cable routing, physical positioning, and system interconnects.

Grid Interconnection and Soft Costs

Soft costs include environmental permitting, local grid impact studies, utility inspection fees, legal work, and field commissioning. In mature markets, grid connection fees alone can add anywhere from $20/kWh to $50/kWh to the final bill.

How Have Grid Scale Battery Storage Costs Changed Over the Past Few Years?

According to authoritative findings from independent institutions like Ember Energy and NREL Cost Projections, utility-scale battery equipment prices experienced unprecedented drops over recent years.

Historical Battery Storage Cost per kWh

Turnkey 4-Hour Utility BESS Cost Trajectory (Global Benchmark):

2022: $380 – $420 / kWh (Supply chain bottlenecks & high lithium carbonate prices)
2023: $280 – $340 / kWh (Gradual easing of material constraints)
2024: $165 – $210 / kWh (Rapid expansion of 314Ah cell production)
2025: $125 – $155 / kWh (Ember reports all-in BESS turnkey capex reaching ~$125/kWh outside US/China)
2026: $110 – $145 / kWh (Stabilizing near raw material floors with focus on BOS efficiency)

Why Battery Storage Costs Have Declined

The decline is driven by massive scaling in cell manufacturing, rapid adoption of high-density Lithium Iron Phosphate (LFP) chemistries, and automated pack manufacturing. Moving from 280Ah cells to 314Ah and 587Ah formats allows manufacturers to pack more energy into standard 20ft container footprints, cutting structural steel, shipping costs, and field assembly labor.

Why Some BESS Project Costs Are Still Rising

While hardware prices drop, soft costs have risen in many regions. High demand for step-up transformers has pushed delivery lead times past 100 weeks, raising equipment holding costs. Furthermore, local union labor rates, stringent fire code upgrades (NFPA 855), and tariff barriers have raised total installed expenses in specific markets.

What Drives Grid Scale Battery Storage Cost?

Battery Chemistry and Raw Material Costs

Lithium carbonate, iron, and phosphate spot prices directly dictate cell manufacturing costs. LFP chemistry dominates stationary storage because it avoids costly nickel and cobalt while delivering superior thermal stability and long cycle life.

Manufacturing Scale and Technology

Gigafactory automation has pushed cell yield rates above 95%. Higher manufacturing throughput lowers overhead costs per cell, translating to lower prices for developers.

Policy, Tariffs and Market Conditions

Government policy heavily impacts delivered prices. Import tariffs (such as US Section 301 tariffs) and domestic content rules create substantial regional price variations, making hardware significantly more expensive in protected markets.

Grid Scale Battery Storage Cost by Region

A project’s geographical location can double its final installed cost due to local labor rates, import taxes, and grid interconnection rules.

Geographic Region	Turnkey CAPEX ($/kWh)	Primary Regional Cost Drivers	Buyer Impact & Strategy
Mainland China	$75 – $100	Fully integrated domestic supply chain, low local EPC labor rates, rapid grid interconnection.	Lowest initial CAPEX globally; fast project deployment timeline.
Europe & UK	$130 – $175	Import shipping expenses, strict environmental permitting, expensive high-voltage grid ties.	High ancillary service revenue potentials offset higher initial CAPEX costs.
United States	$180 – $240	Section 301 import tariffs, Inflation Reduction Act (IRA) domestic content rules, high union labor rates.	Developers rely on ITC tax credits to offset premium local installation costs.

Why Does BESS Cost Differ by Region?

In simple terms: Hardware Cost + Freight + Import Tariffs + EPC Labor + Permitting + Grid Connection = Final Turnkey Cost. While DC hardware prices remain fairly global, local labor rates and trade policies create substantial regional price gaps.

How Does Battery Chemistry Affect Grid Scale Battery Storage Cost?

Selecting the right cell technology directly impacts upfront CAPEX and long-term operational economics.

Chemistry Metric	LFP (Lithium Iron Phosphate)	NMC (Nickel Manganese Cobalt)	Sodium-Ion (Na-Ion)	Technical Advantage & Context
DC Block Hardware Cost	$65 – $80 / kWh	$100 – $130 / kWh	$50 – $70 / kWh (Early Scale)	LFP provides the lowest cost per cycle for stationary grid applications.
Expected Cycle Life	6,000 – 10,000 cycles	3,000 – 4,500 cycles	4,000 – 6,000 cycles	Higher cycle life eliminates early augmentation expenditures over 15–20 year terms.
Thermal Runway Stability	High (~270°C threshold)	Moderate (~210°C threshold)	Very High (>300°C threshold)	LFP chemistry significantly simplifies fire suppression and permitting compliance.
Energy Density	Moderate (160 – 180 Wh/kg)	High (230 – 280 Wh/kg)	Low (120 – 150 Wh/kg)	NMC saves physical footprint on urban sites with strict space limits.

LFP vs NMC for Grid Scale Storage

LFP (Lithium Iron Phosphate) has effectively won the stationary grid market. It offers a longer cycle life, superior thermal safety, and lower raw material costs compared to NMC (Nickel Manganese Cobalt). NMC is now reserved almost exclusively for space-constrained urban installations.

Emerging Battery Technologies

Sodium-Ion (Na-Ion) batteries are emerging as a cost-effective alternative for short-duration grid support. Na-Ion cells avoid lithium entirely, utilizing abundant sodium. Flow batteries (vanadium redox) offer unlimited cycle life for 8+ hour duration needs, though their high initial CAPEX limits near-term market share.

How Does Storage Duration Affect Grid Scale Battery Storage Cost?

Storage duration directly shapes total project economics. Extending discharge duration spreads fixed power infrastructure costs across a larger volume of energy storage capacity.

2-Hour Battery Storage Cost

A 2-hour system (e.g., 100 MW / 200 MWh) requires the same 100 MW inverter and transformer setup as a 4-hour system. Because the power equipment represents a larger share of the total expenditure, turnkey pricing for 2-hour assets averages $140–$175/kWh.

4-Hour Battery Storage Cost

The 4-hour BESS (e.g., 100 MW / 400 MWh) remains the industry benchmark for solar capacity firming. The additional battery capacity lowers unit cost figures to $110–$145/kWh turnkey.

Why 4-Hour BESS Costs More Overall but Delivers Better Value

Doubling storage duration from 2 to 4 hours does not double the overall project cost. Inverter, transformer, cabling, and substation upgrade costs remain virtually unchanged. You only add DC battery containers, lowering your overall cost per stored kWh and opening up longer energy arbitrage windows.

What Are the Hidden Costs of Grid Scale Battery Storage?

Project financial models often fail because developers overlook hidden lifecycle expenses.

Permitting and Inspection Costs

Obtaining local environmental permits, noise level assessments, and zoning approvals can easily cost $50,000 to $200,000 in engineering and legal fees before construction begins.

Fire Safety and Code Compliance

Meeting NFPA 855 standards or UL 9540A large-scale fire testing requirements often requires specialized blast walls, dedicated thermal imaging cameras, and water supply lines for local fire departments.

Battery Degradation

Batteries degrade with every cycle and with calendar aging. Operating cells at elevated temperatures accelerates capacity loss, reducing daily revenue potential if not managed properly.

Battery Replacement and Augmentation

To maintain nameplate rating (e.g., keeping 100 MWh usable capacity over a 20-year Power Purchase Agreement), developers must schedule cell augmentation around Year 8 to 12. Budgeting roughly $15–$25/kWh for future cell additions prevents revenue shortfalls down the road.

O&M and Long-Term Service

Annual Operations & Maintenance (O&M) averages 1.5% to 2.5% of initial CAPEX per year. This covers HVAC/chiller maintenance, coolant flushes, BMS firmware updates, and scheduled inverter servicing.

Grid Scale Battery Storage CAPEX vs OPEX: What Is the Real Project Cost?

Evaluating a utility battery based solely on initial purchase price is a common mistake. True financial performance relies on Total Cost of Ownership (TCO).

CAPEX Breakdown

CAPEX covers initial engineering, DC hardware, PCS, transformers, civil pads, installation, and grid interconnection work up to system commissioning.

OPEX Breakdown

OPEX covers annual land leases, property taxes, insurance, remote SCADA monitoring, chiller maintenance, and extended performance guarantees.

Battery Degradation and Replacement Cost

Factoring planned battery augmentation into your cash flow model ensures that cell replacement expenses are offset by ongoing daily energy arbitrage revenues.

Total Cost of Ownership Over the Project Lifetime

Calculating TCO over a 20-year operational life allows you to evaluate supplier options effectively. A system that costs 5% more upfront but offers higher round-trip efficiency and lower cell degradation will yield a significantly higher net internal rate of return (IRR).

How Much Does a 100 MW Grid Scale Battery Storage Project Cost?

A 100 mw battery storage system cost calculation serves as an industry baseline for utility-scale project modeling.

Example 1: 100 MW / 200 MWh BESS (2-Hour System)

DC Battery Equipment (200 MWh): ~$14.0 Million ($70/kWh)
Power Conversion & Electrics (100 MW): ~$8.5 Million ($85/kW)
EPC, Civil Foundations & Interconnection: ~$7.5 Million
Estimated Total Turnkey Cost: $28.0M – $34.0 Million ($140–$170/kWh)

Example 2: 100 MW / 400 MWh BESS (4-Hour System)

A benchmark 100 mw 400 mwh bess installation offers double the energy storage duration for enhanced grid shifting:

DC Battery Equipment (400 MWh): ~$27.0 Million ($67.5/kWh)
Power Conversion & Electrics (100 MW): ~$9.0 Million ($90/kW)
EPC, Civil Foundations & Interconnection: ~$12.0 Million
Estimated Total Turnkey Cost: $46.0M – $54.0 Million ($115–$135/kWh)

From $/kW to $/kWh: How to Estimate Your Project Cost

Total Estimated Budget = (Energy Rating MWh × $/kWh DC Rate) + (Power Rating MW × $/kW PCS Rate) + EPC & Grid Tie Scope

*Disclaimer: Formula intended for preliminary budget modeling. Official engineering quotes require detailed site surveys and grid interconnection studies.

Is Grid Scale Battery Storage a Good Investment in 2026?

Evaluating whether to move forward with project financing requires looking beyond initial hardware costs to analyze full revenue stacking potential.

Energy Arbitrage Revenue

Arbitrage involves charging the battery during midday hours when solar output drives power prices down (or negative), and discharging during evening peak demand periods when power spot prices spike.

Ancillary Service Revenue

Utilities pay BESS operators for rapid sub-second frequency regulation, spinning reserves, and voltage control to stabilize grid fluctuations caused by intermittent renewable generation.

Capacity and Grid Services Revenue

In many power markets, grid operators issue fixed monthly capacity payments to BESS owners simply for guaranteeing available output during severe grid stress events.

Levelized Cost of Storage (LCOS) and IRR Calculations

According to 2026 BloombergNEF analytics, the global benchmark levelized cost of storage for 4-hour utility projects fell to around $78/MWh. With global average turn-key project CAPEX hitting ~$125/kWh in open markets, project internal rates of return (IRR) remain attractive at 11% to 16% across active energy trading regions.

What Should Buyers Evaluate Before Purchasing Grid Scale Battery Storage?

Before issuing a Request for Proposal (RFP) or signing an procurement contract, procurement teams should audit suppliers across five core metrics:

Cycle Life and Warranty Terms

Ensure warranty documentation explicitly states cycle limits tied to depth of discharge (DoD) and operating temperatures (e.g., 6,000 cycles at 80% DoD under 25°C average cell temperature).

Battery Chemistry and Application Fit

Verify that cell chemistry aligns with your duty cycle. High-throughput daily arbitrage requires long-life LFP cells rather than energy-dense automotive cell derivatives.

Supplier Engineering and After-Sales Support

Verify that your manufacturer maintains local technical service hubs, ready spare parts inventories, and guarantees on-site technician arrival response times under 24 hours.

Incentive and Compliance Eligibility

Ensure the system design complies with local electrical standards (such as UL 9540, CE, or IEC 62619) to qualify for regional clean energy subsidies and tax credits.

Compare Total Cost, Not Just $/kWh

Remember: The lowest upfront price rarely translates to the lowest lifetime cost. Factor in round-trip efficiency, degradation rates, auxiliary power consumption, and warranty backing when evaluating bids.

2026 Grid Scale Battery Storage Cost: Is Now the Right Time to Buy?

A common question among developers is whether to execute procurement now or wait for battery prices to fall further.

Why Falling Battery Prices Do Not Mean Buyers Should Always Wait

Waiting for further cell price drops can backfire. Prolonged transformer lead times, escalating grid interconnection queues, and shifting tariff regulations can easily cost you more in delayed market revenues than you save on cell hardware.

When Lower Equipment Prices Can Be Offset by Other Project Costs

If transformer costs rise by 15% or local EPC labor rates increase due to regional shortages while you wait for a 5% drop in battery cells, your net installed project cost increases.

Why Strategic Procurement Matters in 2026

Locking in equipment supply early secures critical transformer queue positions, allowing your site to achieve Commercial Operation Date (COD) faster and capitalize on current energy trading margins.

Grid Scale Battery Storage Cost Outlook for 2027

Will Battery Costs Continue to Fall?

Analysts project annual price declines will moderate to 3%–5% through 2027. Hardware costs are approaching raw material floors, shifting the primary focus toward balance-of-plant design optimization and automated field assembly.

How LFP and Sodium-Ion Could Change Future Costs

Next-generation 587Ah+ LFP cells and mass-market Sodium-ion options will further lower initial capital costs for stationary storage, expanding economically viable project sites globally.

What Buyers Should Prepare for in 2027

Future-proof your designs by selecting modular, high-density enclosures with flexible EMS interfaces capable of integrating future battery augmentations without replacing existing power conversion infrastructure.

Get a Customized Grid Scale Battery Storage Cost Estimate

Every project faces unique site conditions, grid codes, and operational profiles. Our engineering team provides detailed equipment specs, CAD layout modeling, and complete budget estimates tailored to your project goals.

Tell Us Your Project Requirements:

Project Location & Target Commercial Operation Date (COD)
Required Power Capacity (MW) & Energy Volume (MWh)
Primary Application (Peak Shaving, Solar Shifting, Ancillary Services)
Grid Interconnection Voltage Level (e.g., 11kV, 33kV, 138kV)

Request Custom BESS Budget Estimate →

Frequently Asked Questions About Grid Scale Battery Storage Cost

How much does grid scale battery storage cost in 2026?

Globally (excluding the US and mainland China), a turnkey 4-hour utility BESS averages $110 to $145 per kWh installed. US projects average $180 to $240 per kWh due to domestic labor, tariff policies, and local civil interconnection costs.

What is the cost of a 100 MW battery storage system?

A 100 MW / 200 MWh (2-hour) system costs roughly $28 million to $34 million installed. A 100 MW / 400 MWh (4-hour) system averages $46 million to $54 million turnkey.

How much does a 4-hour BESS cost?

A standalone 4-hour utility system ranges from $110/kWh to $145/kWh turnkey, with core DC battery hardware accounting for $65–$80/kWh of that total.

What is the average BESS cost per kWh?

At the factory gate, DC battery blocks trade at $65–$80/kWh. Fully installed turnkey project costs average $125/kWh globally.

What is included in utility-scale BESS pricing?

Turnkey pricing includes DC battery blocks, bi-directional inverters (PCS), step-up transformers, medium-voltage switchgear, EMS software, liquid cooling systems, fire suppression, civil foundation work, site labor, and grid interconnection.

Is LFP cheaper than NMC for grid-scale battery storage?

Yes. LFP battery hardware is roughly 30% to 40% cheaper per kWh than NMC, while delivering over twice the operational cycle life and superior thermal stability.

What are the hidden costs of a BESS project?

Common hidden expenses include grid interconnection study fees, transformer lead-time delays, long-term cell augmentation reserves, fire suppression compliance upgrades (NFPA 855), and annual HVAC/chiller O&M servicing.

How is grid-scale battery storage ROI calculated?

ROI is calculated by modeling total cash inflows from stacked revenue streams (peak energy arbitrage, frequency response, capacity payments) against initial turnkey CAPEX, ongoing O&M, and cell degradation augmentation costs over a 15–20 year life.
