Introduction
In the rapidly evolving landscape of global e-mobility, the DC Fast Charging Station has emerged as the backbone of modern transportation infrastructure. As an engineer who has spent two decades designing power conversion modules and overseeing large-scale grid integrations, I have seen the industry shift from experimental 20kW prototypes to the ultra-fast 480kW liquid-cooled systems of today. For commercial property owners, fleet managers, and investors, choosing the right equipment is no longer just about “plugging in a car”—it is about managing high-voltage assets, optimizing grid capacity, and ensuring a sustainable Return on Investment (ROI).
In this comprehensive guide, we will dive deep into the technical architecture, application scenarios, and the critical integration of energy storage that defines the next generation of EV infrastructure.
What Is a DC Fast Charging Station and How Does It Work?
To understand a DC Fast Charging Station, one must first understand the bottleneck of AC charging. In a standard Level 2 AC setup, the “charger” is actually inside the vehicle (the On-Board Charger or OBC). The OBC converts AC from the grid into DC for the battery, but it is limited by size and weight, usually capping at 7kW to 22kW.
A DC Fast Charging Station bypasses the OBC entirely. It converts high-voltage AC from the utility grid into DC internally and delivers that power directly to the vehicle’s battery management system (BMS). This allows for massive power delivery, reducing charging times from hours to mere minutes.
AC vs DC Fast Charging: Key Technical Differences
| Feature | AC Charging (Level 2) | DC Fast Charging (Level 3) |
| Conversion Location | Inside the vehicle (OBC) | Inside the charging station |
| Power Output | 3.7kW – 22kW | 60kW – 400kW+ |
| Voltage | 208V / 240V / 400V AC | 200V – 1000V DC |
| Typical Charge Time | 4 – 8 hours | 15 – 40 minutes |
| Primary Use Case | Residential / Overnight | Commercial / Highway / Fleet |
Core Components Inside a DC Fast Charging Station
From a maintenance perspective, a high-quality station is a marvel of modular engineering. Its reliability depends on four core pillars:
- Power Modules (The Engine): These are the rectifiers that do the heavy lifting. Modern stations use 30kW or 40kW modules. If one fails, the station can continue to operate at reduced capacity—a feature known as “n+1 redundancy.”
- The OCPP Controller (The Brain): Open Charge Point Protocol (OCPP) 1.6J or 2.0.1 compatibility is non-negotiable. It handles authorization, billing, and load balancing.
- Cooling System: High-power conversion generates significant heat. While 60kW units use forced air cooling, ultra-fast units (350kW+) utilize liquid-cooled cables to keep the weight manageable for the user while preventing thermal throttling.
- The Rectifier and Filter Stage: This ensures the “cleanliness” of the DC current, protecting the EV’s expensive battery from harmonic distortion and voltage ripples.
Typical Power Levels: 60kW, 120kW, 180kW, 240kW Explained
Selecting the wrong power level can ruin your project’s economics.
- 60kW: Perfect for “destination” charging where dwell time is 1-2 hours (e.g., shopping malls, cinemas).
- 120kW – 180kW: The “sweet spot” for public charging stations. It provides a significant charge in 20-30 minutes, matching the time a driver spends at a rest stop or cafe.
- 240kW – 480kW: Reserved for heavy-duty logistics and highway “en-route” charging where every second counts.
DC Fast Charging Station for Commercial Use: Key Application Scenarios
The deployment of a DC Fast Charging Station must align with the behavior of the driver. Over my 20 years in the field, I have categorized successful commercial projects into four primary buckets.
Highway and Public EV Charging Infrastructure
On major transit corridors, “uptime” is the only metric that matters. These sites require ruggedized stations with high IP ratings (IP54/IP55) to withstand extreme weather. Furthermore, these stations must support dynamic power sharing, allowing two vehicles to charge simultaneously from a single unit.
Fleet Charging Depots and Logistics Parks
For electric delivery vans and trucks, charging is a mission-critical operation. Here, we focus on “Sequential Charging.” Instead of giving every van a dedicated charger, one high-power DC Fast Charging Station can be connected to multiple dispensers, charging vans one by one overnight to minimize peak demand charges from the utility.

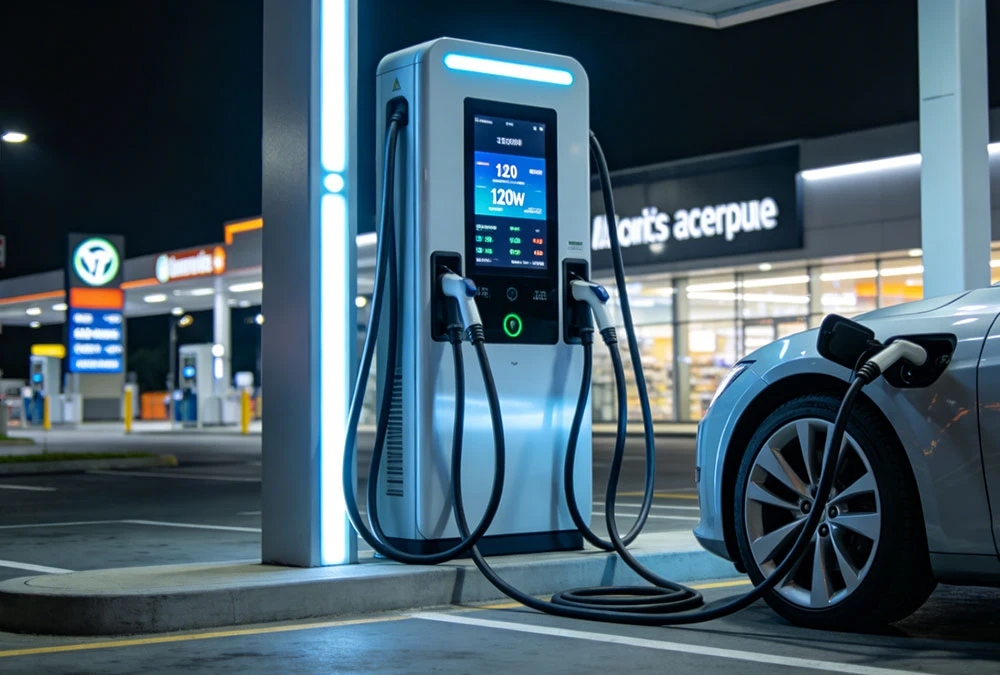

Retail, Hotels, and Commercial Real Estate Projects
For property owners, EV charging is an amenity that drives foot traffic. Integrating the station with a loyalty program or offering “validated charging” via the OCPP backend can significantly increase the property’s value.
Integration with Battery Energy Storage Systems (BESS)
As an engineer who has transitioned many sites to “Microgrids,” I cannot overstate the importance of BESS. Many commercial sites face a massive obstacle: the grid cannot provide enough power. If you want to install four 120kW stations but only have 200kW of spare transformer capacity, you have two choices: pay $200,000 for a utility upgrade or install a 300kWh Battery Energy Storage System. The BESS “buffers” the grid, charging slowly during the day and discharging rapidly when an EV plugs in. This is the future of the DC Fast Charging Station—a self-contained energy ecosystem.
DC Fast Charging Station Cost Breakdown and ROI Analysis
Investing in EV infrastructure is a CAPEX-heavy endeavor. Understanding the “Total Cost of Ownership” (TCO) is vital for a healthy ROI.
Equipment Cost vs Installation Cost
A common mistake is budgeting only for the hardware. In my experience:
- Equipment: 40% of the budget.
- Civil Works & Permitting: 30% (trenching, concrete pads, ADA compliance).
- Electrical Infrastructure: 30% (transformers, switchgear, heavy-gauge copper cabling).
Utility Upgrade and Transformer Capacity Requirements
A 120kW station doesn’t just pull 120kW; due to conversion losses and auxiliary systems (cooling, lighting), you should budget for approximately 135kVA of capacity per unit. If your local substation is at capacity, the “hidden cost” of a DC Fast Charging Station project can skyrocket without early engineering consultation.
Operating Cost, Maintenance, and Software Platform Fees
Maintenance is the “silent ROI killer.” Filters must be cleaned, and cables must be inspected for wear. I recommend a preventative maintenance contract that accounts for roughly 2-3% of the initial hardware cost annually. Additionally, expect a monthly “SaaS fee” for the OCPP management software.
How to Calculate ROI for a Commercial DC Fast Charging Station
To calculate the payback period, use this formula:
If a 120kW station in a prime location has a 15% utilization rate (3.6 hours/day), it can generate significant revenue. With current government tax credits and carbon offset credits (like LCFS in California), many of our clients see a full ROI within 36 to 48 months.
How to Choose the Right DC Fast Charging Station for Your Project
Choosing a vendor is about more than the spec sheet; it’s about long-term reliability.
Selecting the Right kW Based on Traffic Flow
If your site is a convenience store where the average stay is 15 minutes, a 60kW unit is useless—drivers won’t get enough range to justify the stop. You need at least 150kW. Conversely, a hotel can thrive with 30kW-60kW “Wallbox DC” units because guests stay overnight.
Single Gun vs Dual Gun DC Fast Charging Station
Always opt for Dual Gun systems with “Smart Power Allocation.” This technology detects the SoC (State of Charge) of both vehicles. If Car A is nearly full and only accepting 20kW, the station can “shift” the remaining 100kW to Car B, which is at 10% and hungry for power. This maximizes your revenue per minute.
OCPP 1.6 / 2.0.1 Compatibility and Smart Charging Management
Avoid “Closed Loop” systems. You want a DC Fast Charging Station that allows you to switch software providers if their service or pricing becomes unacceptable. OCPP is your “Declaration of Independence” in the charging world.
Air Cooling vs Liquid Cooled Charging Cable
Standard cables are rated for 200A. To deliver 350kW+, you need 500A+. A 500A air-cooled cable is as thick as a human arm and impossible for most people to lift. Liquid-cooled cables use a mixture of water and glycol to stay cool, allowing the cable to remain thin and flexible.
Technical Specifications of a High-Performance DC Fast Charging Station
When reviewing a datasheet, look for these “Pro-Engineer” specs:
- Efficiency: Look for $>95\%$. Lower efficiency means higher electricity bills and more heat.
- Input Power Factor: Should be $\ge 0.99$ to avoid reactive power penalties from your utility.
- Safety Protections: Over-voltage, under-voltage, short circuit, surge protection (Type II), and ground fault monitoring are mandatory.
- Environmental Resilience: A C4 or C5 anti-corrosion rating is essential for coastal installations.

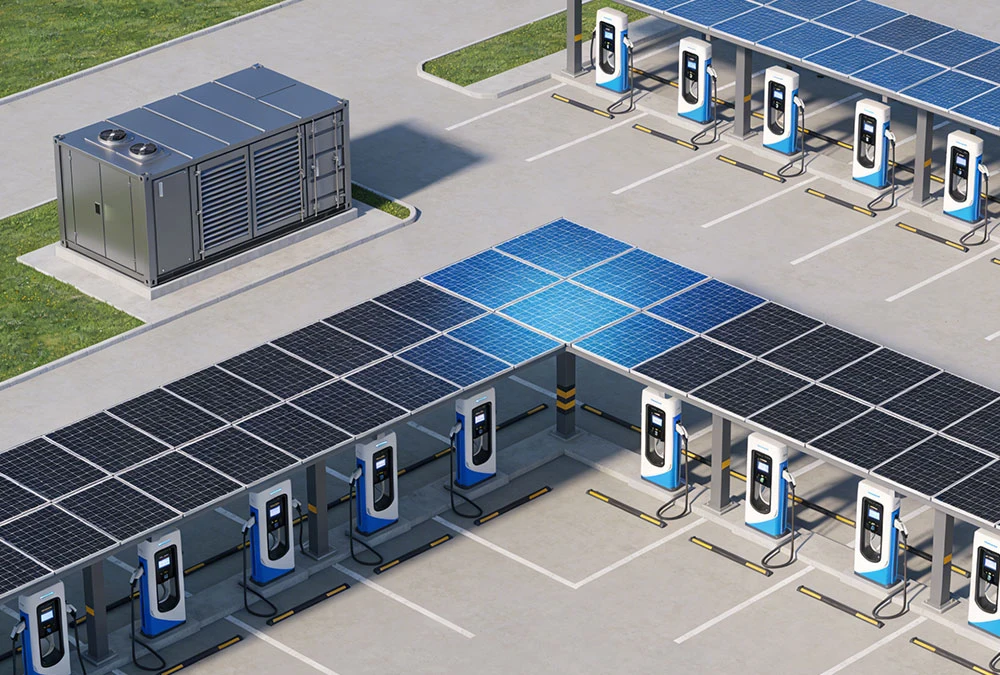

DC Fast Charging Station + Energy Storage: Reducing Grid Upgrade Costs
The integration of storage is the “Secret Sauce” for 2026 and beyond. By pairing a DC Fast Charging Station with a battery:
- Peak Shaving: You can “cap” your draw from the grid at 50kW even if you are providing 120kW to a car. This saves thousands in “Demand Charges.”
- Backup Power: During a grid outage, your station can still provide emergency juice to fleet vehicles.
- Solar Integration: Use 100% green energy collected from your rooftop to charge cars, making your project truly “Net Zero.”
Why Invest in a DC Fast Charging Station Now?
We are currently in the “Land Grab” phase of EV infrastructure.
- Market Growth: EV sales are projected to make up 50% of new car sales by 2030 in many regions.
- Subsidies: Programs like the EU’s Green Deal and the US NEVI program are covering up to 80% of project costs for early adopters.
- First-Mover Advantage: Once a charging hub is established at a prime location, it is very difficult for competitors to move in.
DC Fast Charging Station FAQ (Featured Snippet Optimized)
How much does a DC fast charging station cost?
The total cost of a DC fast charging station typically ranges from $25,000 to $120,000. Hardware for a 60kW unit starts around $15,000, while 350kW units exceed $60,000. Installation, permits, and electrical upgrades usually add another $10,000 to $50,000 depending on site conditions.
How long does a DC fast charging station take to charge a car?
A 120kW DC fast charging station can add approximately 200-250 miles of range per hour. For a typical EV with a 60kWh battery, charging from 20% to 80% takes about 25 minutes. Higher power units (350kW) can reduce this to under 15 minutes for compatible vehicles.
What power capacity is required for a 120kW DC fast charging station?
You generally require a dedicated 150kVA transformer capacity for a 120kW station. This accounts for the 480V three-phase input, internal conversion efficiency losses, and the power required for the station’s thermal management systems and auxiliary electronics.
Is a DC fast charging station profitable for commercial use?
Yes. With an average utilization rate of 20% and smart load management, a DC fast charging station typically achieves a payback period of 3 to 5 years. Profitability is significantly enhanced when combined with government grants, carbon credits, and onsite solar/storage systems.
Conclusion: Building for the Future
The transition to electric mobility is an engineering challenge as much as it is a business opportunity. A successful DC Fast Charging Station project requires a deep understanding of power electronics, grid limitations, and user behavior. By choosing modular, OCPP-compliant hardware and considering the integration of battery storage, you ensure that your investment remains relevant for the next two decades.
Would you like me to provide a customized technical specification sheet or an ROI projection for your specific site location?
