| Input Voltage | AC380V±15% | ||||
| Input Frequency | 50±10 Hz | ||||
| Output Voltage | 200-（750 ）1000VDC | ||||
| Single Gun Output Current Range | 0-200A | ||||
| Cable Length | 5m ( Optional ) | ||||
| Metering Accuracy | 1.0 Level | ||||
| Current Limit Protection Value | ≥110% | ||||
| Voltage Stabilization Accuracy | ≤±0.5% | ||||
| Current Stabilization Accuracy | ≤±1% | ||||

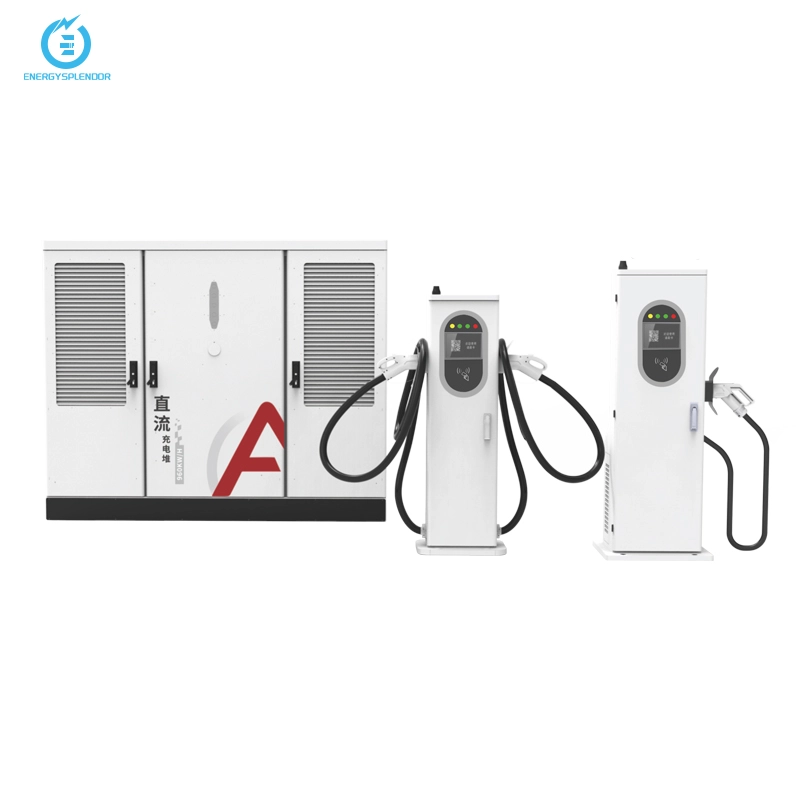

Ultra Super EV Charger-240kW-1440kW Charging Team
En Ultra Super EV Charger delivers cutting-edge performance with dual charging options — 250A Fast Charging y 600A Superfast Charging — designed to meet the demands of modern electric mobility. Built with advanced DC technology, it ensures high efficiency, stable current output, and rapid energy transfer for both passenger and commercial electric vehicles. Its intelligent control system supports real-time monitoring, temperature management, and multiple safety protections, guaranteeing reliable operation in various environments. Ideal for highway service stations, fleet charging hubs, and urban EV infrastructure, this ultra super charger significantly reduces charging time while improving operational efficiency.

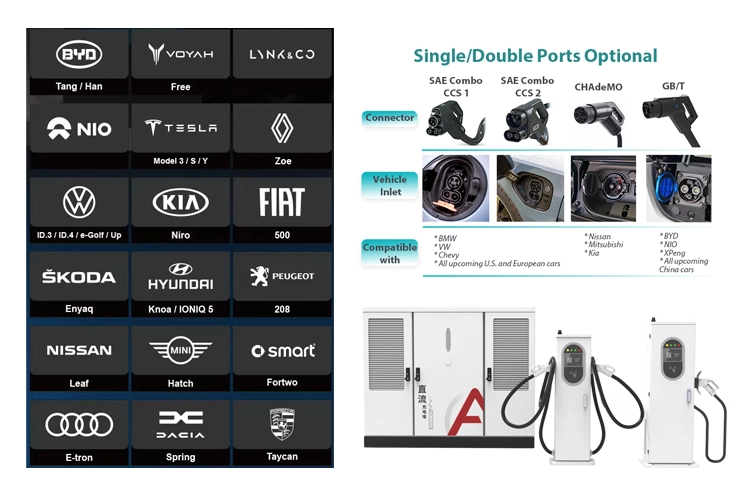

Super Fast EV Charging Stations-Compatibility 99% Electric Vehicle
En Super Fast EV Charging Stations are engineered for maximum compatibility and ultra-high performance. Designed with single or double charging ports, these stations support global charging standards including SAE Combo CCS1, CCS2, CHAdeMO, and GB/T, por lo que son ideales para all major EV brands such as Tesla, BYD, Volkswagen, NIO, Hyundai, Kia, and Audi. With options for 250A fast charging y 600A superfast charging, they deliver rapid, reliable energy for both passenger and commercial electric vehicles. Built-in smart control, real-time monitoring, and multi-protection systems ensure safe and efficient DC fast charging. Perfect for highway rest areas, fleet depots, and commercial charging networks, these stations represent the next step in scalable and future-ready EV infrastructure.

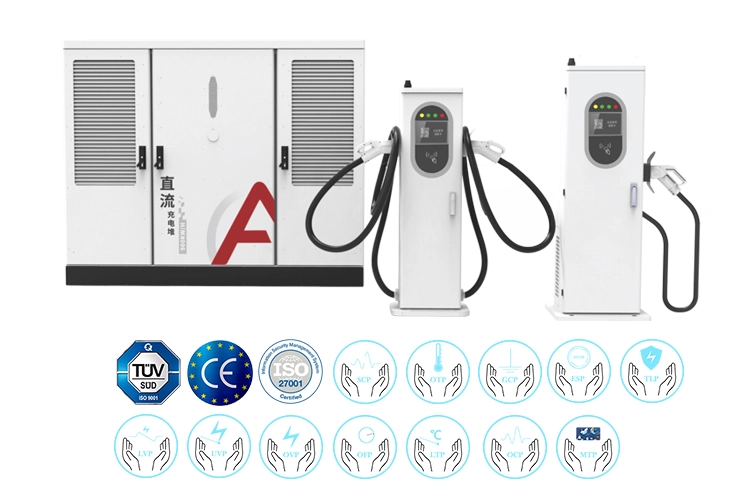

Ultra Fast EV Charging Station – Protection System
En Ultra Fast EV Charging Station – Protection System is built for reliability, safety, and long-term stability. Equipped with multiple international certifications including TÜV, CE, and ISO27001, it ensures compliance with global safety and quality standards. The system integrates comprehensive protection mechanisms como overvoltage (OVP), undervoltage (UVP), overcurrent (OCP), overtemperature (OTP), short circuit (SCP), and leakage protection (LFP), guaranteeing safe operation in all charging conditions. With smart thermal control y real-time monitoring, this high-performance DC fast charging station offers enhanced protection for both vehicles and users. Ideal for public charging networks, fleet depots, and highway service areas, it represents the new benchmark in safe and efficient EV charging infrastructure.
Custom EV Charger Station
En Custom EV Charger Station offers a fully flexible solution for diverse charging needs, supporting both AC and DC charging modes. Designed with a modular and SKD (Semi Knocked Down) structure, it allows easy assembly, customization, and scalability for different business applications. The system integrates a flexible charging stack, enabling adaptable power configurations to meet the demands of residential, commercial, and fleet charging environments. With intelligent control, real-time monitoring, and multi-protection features, this custom EV charging solution delivers efficient, safe, and future-ready performance. Ideal for OEMs, energy operators, and infrastructure developers looking to build tailored EV charging systems.
What is a Super EV Charger?
A Super EV Charger refers to an ultra-fast DC charging station capable of delivering extremely high power output — typically between 150 kW and 600 kW.
It uses advanced silicon carbide (SiC) power modules y liquid-cooled cables to safely deliver high current directly to the EV battery.
Unlike AC chargers, a super EV charger bypasses the vehicle’s onboard converter and provides direct DC power, allowing an 80% battery charge in 10–20 minutes, depending on the vehicle type.
This makes it ideal for highway charging hubs, logistics fleets, y next-generation electric trucks.
How does a Super EV Charger work?
A super fast EV charger converts high-voltage AC grid power (400–800 V) into regulated DC output (up to 1000 V / 600 A) through a series of DC power modules.
Its intelligent controller communicates with the vehicle’s Battery Management System (BMS) via OCPP 1.6 / 2.0.1 protocol to dynamically adjust voltage and current.
The system also supports load balancing y dynamic power distribution, enabling multiple vehicles to charge simultaneously without overloading the grid.
This technology ensures high efficiency (≥ 96%), minimal power loss, y stable operation, even under continuous high-load conditions.
What are the main features of a Super EV Charger?
Modern Super EV Chargers typically include:
High-power output: 360 kW – 1440 kW
Modular design: Expandable by stacking 30–40 kW DC power modules
Smart connectivity: OCPP, Ethernet, 4G/5G, RFID, and payment integration
Cooling system: Liquid or hybrid cooling for heat control
Safety protection: Over-voltage, over-current, insulation monitoring
Compatibilidad: Supports CCS1, CCS2, CHAdeMO, GB/T, and NACS standards
These features make the Super EV Charger the preferred choice for redes públicas de tarificación y fleet depots aiming for rapid turnaround.
Comparison: Super EV Charger vs. Regular DC Fast Charger
| Característica | DC Fast Charger (120 kW) | Super EV Charger (350 kW – 600 kW) |
| Velocidad de carga | 30–45 min (80%) | 10–15 min (80%) |
| Output Voltage | 200–500 V DC | 200–1000 V DC |
| Cooling Method | Air cooling | Liquid cooling |
| Eficacia | 94–95% | ≥ 96% |
| Ideal Use | City public stations | Highway hubs, fleets |
| Cost Range | $20,000 – $35,000 | $40,000 – $90,000 |
Conclusión:
A Super EV Charger dramatically reduces charging time while improving efficiency and energy utilization — essential for large-scale EV infrastructure deployment.
Where are Super EV Chargers used?
Super EV Chargers are commonly installed in:
Highway service areas for long-distance travel
Commercial logistics centers with heavy EV fleets
Public ultra-fast charging hubs in urban areas
Bus depots and truck terminals requiring high-capacity charging
Countries like China, Germany, and the United States are rapidly expanding super-fast EV charging networks under national EV infrastructure programs.
According to IEA’s 2024 report, more than 70,000 ultra-fast chargers (>150 kW) were installed globally — a 60% increase compared to 2023.
Who manufactures Super EV Chargers?
Several global Fabricantes de cargadores para VE produce super EV chargers for sale, including:
ABB (Terra 360 series)
Siemens (Sicharge D)
StarCharge 480 kW Ultra-fast Charger
Delta Electronics 360 kW DC system
TGOOD and Tritium
When choosing a supplier, ensure compliance with international certifications (CE, UL, ISO 15118) and compatibility with local grid and payment systems.
Purchasing from verified Proveedores de cargadores para VE guarantees long-term reliability, software updates, and energy management integration.
