Input Power Supply:L+N+PE
Rated voltage:AC 230V
Rated current:32A
Frequency:50/60Hz
Output voltage:AC 240V
Output current:32A
Rated power:7KW
Cable length:5M Customized
Outer case:PC940
LED indicator:Green/blue/red (blue – standby; green – charger connected to the vehicle, flashing – charging; red – abnormal)
Emergency:stopinclude
Screen:4.3-inch
Network:4G/RJ45/Bluetooth/WiFi
RCD:A+DC6mA
Ingress Protection:IP55
Surge Protection:IK10
Warranty:15 months
Cooling mode:Natural cooling
Installation:Wall-mount/Pole-mount
Working Temperature:-30℃~+50℃
Storage temperature:-40℃~+80℃
Operating humidity:5%~95% no moisture condensation or frost
Working Height:<2000M
Product Dimension:29*18*10.5cm
Package Dimension:48*23*26cm
Net Weight:6KG
Gross Weight:7KG

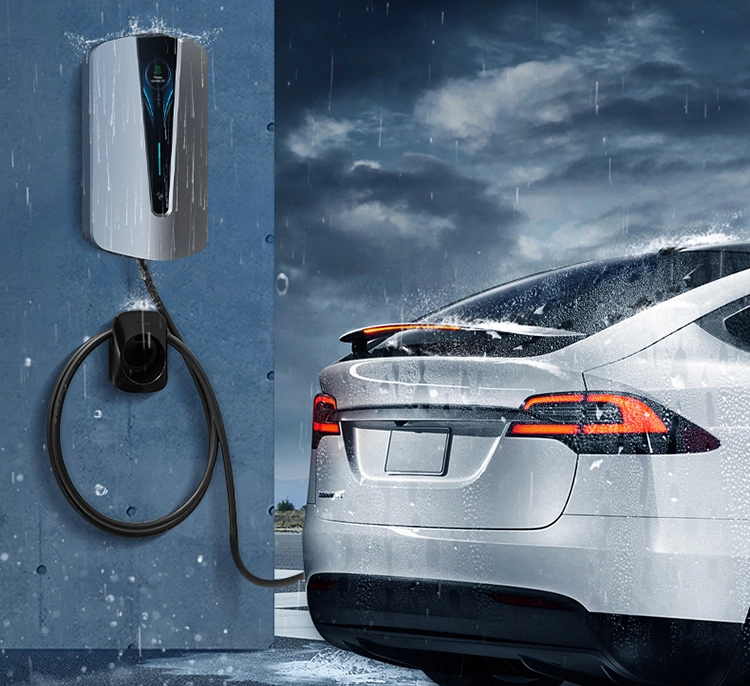

Wallbox EV Charging-Ip55 Ingress Protection
Wallbox EV charging stations are designed for both residential and commercial applications, offering a reliable and safe charging solution for electric vehicles. One of the key highlights is their IP55 ingress protection rating, which ensures excellent durability and adaptability to outdoor environments.
Mit IP55 protection, the wall-mounted AC EV charger is safeguarded against dust ingress and strong water jets. This means it can withstand rain, wind, and varying weather conditions, making it a dependable choice for outdoor installation.
The robust enclosure provides protection against dust particles and water exposure, ensuring long-lasting stability. Whether installed in parking lots, residential garages, or commercial facilities, the charger maintains consistent performance.
Compact in size yet powerful in function, wallbox EV chargers are easy to install and integrate into existing power systems. They support multiple charging standards and can be customized with branding, colors, and logos to meet different market needs.
Durch die Kombination IP55 ingress protection, compact design, and reliable performance, wallbox EV chargers provide peace of mind to users, ensuring safe and efficient charging both indoors and outdoors.
EV Charging Wallbox-9 Protection System
Unser EV charging wallbox is designed with safety and reliability as the top priority, incorporating a 9-level protection system to ensure secure operation for both residential and commercial users.
Die 9 protection functions include:
Overvoltage protection
Undervoltage protection
Overcurrent/overload protection
Short-circuit protection
Leakage protection
Over-temperature protection
Low-temperature protection
Insulation monitoring protection
Emergency stop protection
These features work together to prevent electrical faults, protect both the vehicle and charger, and provide peace of mind during daily charging.
The wallbox is built with a durable enclosure suitable for indoor and outdoor use, often paired with an IP55 ingress protection rating. This ensures it can resist dust, rain, and harsh weather conditions while maintaining stable performance.
Equipped with smart monitoring and control systems, the charger can track operational status in real-time and integrate with management platforms. The design is compact and easy to install, making it ideal for home garages, office parking lots, and commercial charging stations.
With the 9 protection system, our EV charging wallbox guarantees maximum safety, long-lasting reliability, and efficient charging for a wide range of electric vehicles.

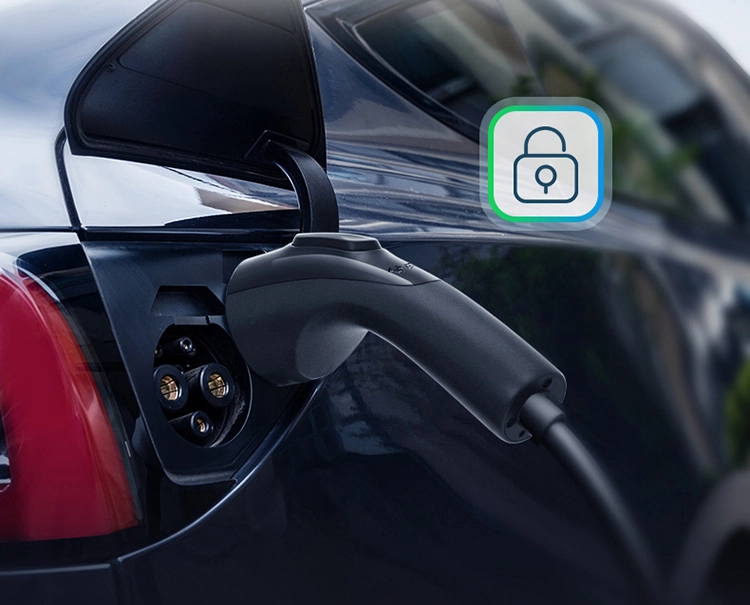

Charger EV Wallbox-Smart Lock
Unser EV wallbox chargers feature an advanced smart lock system designed to secure both your vehicle and charging equipment during use. With the “lock car, lock gun” functionality, the charging gun is automatically locked when your car is parked and charging, preventing theft or unauthorized removal of the charger.
The smart lock is compatible with the vehicle’s electronic locking system. Once the car is locked, the charging gun is automatically secured, ensuring complete safety for your vehicle and charging equipment.
This system protects your EV and the charger from tampering or accidental disconnection, making it ideal for home garages, commercial parking lots, and public charging stations. Users can charge their vehicles with peace of mind, knowing the equipment is firmly locked in place.
The integration is seamless and automatic, requiring no additional operation from the user. The smart lock combines safety with convenience, maintaining the compact and elegant design typical of modern wallbox chargers.
With the Smart Lock feature, our EV wallbox ensures maximum protection, convenience, and reliable operation for every charging session.

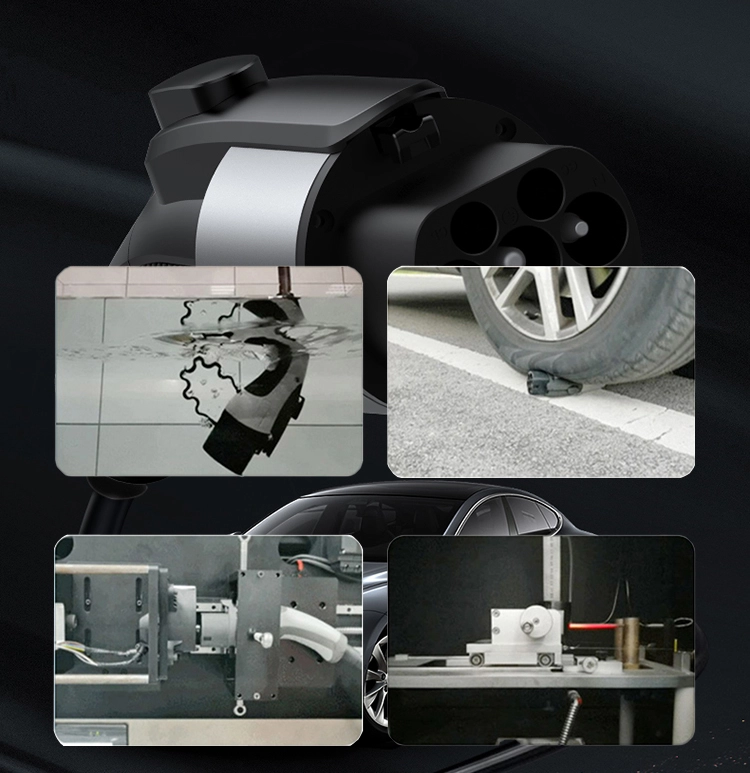

EV Charger Wallbox-Type1/Type2/Gbt/Tesla Plug
Unser EV wallbox chargers are designed for maximum compatibility and durability, unterstützend Type1, Type2, GB/T, and Tesla plugs. The silver-plated connectors ensure stable and efficient charging for all compatible electric vehicles.
Each wallbox undergoes rigorous IP55 waterproof testing, including long-term repeated immersion trials, ensuring reliable operation even in heavy rain or wet conditions.
The charging plugs and cables have passed vehicle crush testing, capable of withstanding the weight of a car without damage, making them safe for parking lot and outdoor installations.
All plugs are tested for 10,000 insertion and removal cycles, ensuring a long service life and reliable connection over years of use.
The connectors and materials undergo high-temperature strength tests, maintaining structural integrity and performance under extreme heat, providing safe operation in hot climates.
Mit robust design, high-quality materials, and international-grade testing, our EV charger wallboxes deliver stable, reliable, and long-lasting charging for all major EV models.
EV Wallbox Charger-Pure Copper Cable
Unser EV wallbox chargers feature high-quality pure copper cables, engineered for efficient and safe long-duration charging. The use of pure copper ensures low resistance and minimal heat generation, allowing the cable to remain cool even during extended charging sessions.
The cables are designed to withstand high temperatures, maintaining stable performance under heavy load or hot climates. This prevents overheating and enhances safety for both the charger and the vehicle.
Pure copper conductors provide excellent electrical conductivity, reducing energy loss and ensuring consistent charging speed. Coupled with robust insulation, the cables are resistant to wear, bending, and environmental stress, ensuring long-lasting durability.
With the combination of pure copper cable and smart thermal management, our wallbox chargers provide reliable, safe, and efficient charging, suitable for residential, commercial, and public charging applications.

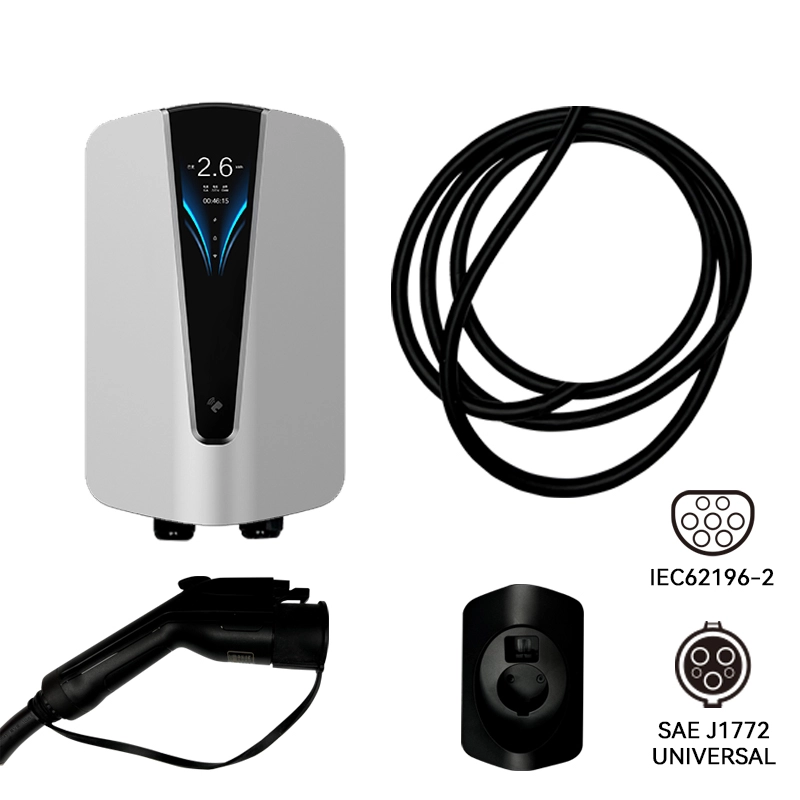

Wallbox Smart EV Charger – Customized
Unser wallbox smart EV chargers offer full customization to meet diverse user needs, whether for residential, commercial, or fleet applications. Designed for intelligent charging management, these chargers combine safety, efficiency, and flexible design.
Customers can customize the charger’s exterior, color, and logo, creating a branded solution that fits their environment or corporate identity. The compact and elegant design ensures it integrates seamlessly into homes, offices, or commercial parking areas.
The smart wallbox supports multiple plug types, including Type1, Type2, GB/T, and Tesla, making it compatible with 99% of electric vehicles worldwide. Charging power, cable length, and connector configuration can also be tailored to specific project requirements.
Equipped with smart monitoring and control systems, the wallbox provides real-time data, remote management via apps, and supports customizable charging modes such as scheduled charging, fixed power, or fixed time. Advanced protection functions safeguard against overvoltage, overcurrent, short-circuit, and high temperatures.
Mit custom design, broad compatibility, and smart control, our wallbox smart EV chargers deliver a reliable, efficient, and personalized charging experience for any setting.
how to install wallbox ev charger?
Installing a Wallbox EV charger involves several steps, and it’s important to follow safety standards and local electrical codes. Here’s a structured guide:
Identify a suitable location near your parking space with access to electrical supply.
Ensure enough clearance for the charger and cable management.
Check if the electrical panel can handle the added load.
Select a Wallbox model based on:
Power output (7 kW, 11 kW, or 22 kW for AC; DC options for faster charging)
Plug type (Type 2, CCS, or Tesla)
Smart features (Wi-Fi/Bluetooth, app control, load balancing)
For residential AC chargers: ensure a dedicated circuit breaker (typically 32–40A for 7–22 kW).
For commercial or higher-power installations: a 3-phase circuit may be required.
Verify proper grounding, surge protection, and residual current devices (RCDs) are installed.
Wallbox units can be wall-mounted or pedestal-mounted.
Follow manufacturer instructions for drilling, securing, and leveling the charger.
Connect the charger to the main distribution board through a dedicated breaker.
Ensure phase, neutral, and ground wiring is correct.
For smart chargers, connect network wiring (Wi-Fi or Ethernet) if required.
Use the Wallbox app or control panel to:
Configure charging schedules
Enable load management or dynamic power distribution
Test charging with a compatible EV
Check that all safety devices and alarms are functioning properly.
Ensure installation complies with local electrical codes and building regulations.
For commercial applications, proper inspection and certification may be required.
Tip: For commercial or high-power installations, working with a professional installer or an OEM/ODM partner like Anengjienergy ensures the setup is safe, efficient, and scalable for multiple users.
Die fastest EV chargers for home are typically AC Level 2 Ladegeräte with higher power ratings, or in rare cases, compact DC chargers designed for residential use.
Leistungsabgabe: 11 kW to 22 kW (single-phase or three-phase depending on local supply)
Aufladegeschwindigkeit: Can add 40–100 km of range per hour
Example Models:
Wallbox Pulsar Plus – up to 22 kW, smart scheduling, app control
Tesla Wall Connector – up to 22 kW, optimized for Tesla EVs
EVBox Elvi – modular, up to 22 kW, suitable for future upgrades
Rare but possible in high-voltage residential setups with 3-phase supply
Leistungsabgabe: 25–50 kW (some custom solutions up to 60 kW)
Aufladegeschwindigkeit: Adds 200–300 km of range in 1–2 hours
Requires professional installation, larger electrical capacity, and safety considerations
Electrical Infrastructure: Check if your home can handle higher current (e.g., 32–63A single-phase or three-phase).
Smart Features: Remote monitoring, scheduling, and load balancing help optimize electricity costs.
Safety: Ensure proper breakers, RCD protection, and certified installation.
Summary:
For most homeowners, a 22 kW AC Level 2 charger is currently the fastest practical option, delivering high charging speeds while remaining compatible with standard residential electrical systems.
What types of plugs are supported by Wallbox EV chargers (Type 1, Type 2, GBT, Tesla)?
Wallbox EV chargers support a variety of plug types depending on the model and regional standards. Here’s the breakdown:
Mainly used in North America and Japan.
Supports single-phase AC charging (typically up to 7.4 kW or 32A).
Found in Wallbox chargers designed for markets with Type 1 EVs.
Standard across Europe, the Middle East, and parts of Asia.
Supports single-phase or three-phase AC charging (up to 22 kW for home or commercial use).
Most Wallbox AC chargers, like Pulsar Plus and Commander 2, come with Type 2 connectors.
Common in China for both residential and commercial EVs.
Wallbox offers GBT-compatible models or can provide OEM/ODM modules for local manufacturers.
Supports AC and sometimes DC fast charging with modular systems.
Proprietary connector used in Tesla vehicles, mainly in North America.
Wallbox provides Tesla-adapted chargers or adapters to enable Tesla charging.
Summary:
Wallbox chargers are highly flexible, supporting Type 1, Type 2, GBT, and Tesla plugs depending on the model and region. This makes them suitable for residential, commercial, and semi-public deployments, and modular designs allow dual or flexible charging setups for multiple vehicle types.
What smart features (app control, scheduling, energy monitoring) does a Wallbox EV charger offer?
Wallbox EV chargers are equipped with a range of smart features designed to optimize charging, improve convenience, and help manage energy costs. Here’s a detailed overview:
Fully controllable via the Wallbox app (iOS and Android).
Allows remote start/stop, monitoring of charging status, and access to usage history.
Useful for fleet managers or commercial operators to track multiple chargers from a single interface.
Set charging schedules to take advantage of off-peak electricity rates.
Can prioritize charging times to avoid grid overload during peak hours.
Some models allow dynamic scheduling based on renewable energy availability (solar/wind).
Monitors energy consumption, charging power, and cost in real time.
Generates reports for billing, fleet management, or operational analysis.
Integrates with smart home or building energy management systems for optimized load balancing.
Automatically distributes available power among multiple chargers to prevent overloading the electrical supply.
Particularly useful in commercial and multi-unit residential installations.
Supports RFID cards, app-based access, or PIN codes.
Allows controlled access for employees, tenants, or paying customers in commercial locations.
Summary:
Wallbox smart features make chargers flexible, efficient, and suitable for both residential and commercial use. They allow users to monitor energy usage, schedule charging, manage multiple chargers, and control access, which is especially important for commercial operators and fleet managers.
Are wall mounted EV chargers compatible with all electric vehicles?
Wall-mounted EV chargers are generally compatible with most electric vehicles, but compatibility depends on the plug type, voltage, and power rating. Here’s a breakdown:
Wall-mounted chargers come with Type 1, Type 2, GBT, or Tesla connectors.
Most modern EVs can charge with Type 2 (Europe/Asia) or Type 1 (North America/Japan).
Tesla vehicles may require a proprietary connector or adapter.
Wall-mounted chargers are usually AC Level 2 (7–22 kW).
Compatible with EVs that support AC charging, which includes nearly all plug-in hybrids (PHEVs) and battery electric vehicles (BEVs).
For DC-Schnellladung, separate DC chargers are required.
Single-phase 240V chargers work for most residential EVs.
Three-phase chargers (up to 22 kW or higher) are better for European and Asian EVs with three-phase AC onboard chargers.
In commercial settings, wall-mounted chargers may serve multiple EV types über dual connectors or flexible modules.
Some smart wall-mounted chargers allow dynamische Leistungsverteilung to optimize charging across different vehicles.
Summary:
Wall-mounted EV chargers are widely compatible, but to ensure full compatibility, check plug type, onboard AC charger capability, and voltage requirements of the EV.
How much does a wall mounted EV charger cost?
The cost of a wall-mounted EV charger varies depending on power output, smart features, and brand. Here’s a general breakdown:
Leistungsabgabe: 7 kW – 22 kW (single-phase or three-phase depending on region)
Price Range: $400 – $1,500 per unit
Beispiele:
Wallbox Pulsar Plus (7–22 kW) – ~$600–$900
Tesla Wall Connector (up to 22 kW) – ~$500–$700
Leistungsabgabe: 11 kW – 22 kW per port
Price Range: $1,500 – $5,000 per unit (depending on smart features, network connectivity, and load balancing)
Often includes app control, RFID access, and energy monitoring
Residential: $300 – $1,000 depending on electrical upgrades, wiring, and labor
Commercial: $1,500 – $5,000+ depending on site complexity, trenching, or 3-phase power connection
Smart features like app scheduling, load balancing, and energy reporting may increase the price.
Dual-port or modular wall-mounted chargers for commercial sites may cost more but allow multiple EVs to charge simultaneously.
Summary:
For most homeowners, a 7–22 kW wall-mounted AC charger costs around $400–$1,500, plus installation. Commercial wall-mounted chargers with smart features can range $1,500–$5,000+ per unit.
